SM822HB Series flattop beacon — 8 mounting options. All models share a 115×78mm cover with 16 high-power 5W super bright LEDs, ECE R65 TB2 rotation and double flash, ECE R10 certified. IP66 waterproof, DC 12-24V wide voltage, synchronization available on select models. Heights: AHB (flexible pipe, 194mm), EHB (single bolt, 147mm), GHB (magnetic, 128mm), HHB (magnetic/3 bolts, 111mm), IHB (flexible & permanent, 217mm), KHB (ISO base/3 bolts, 108mm), MHB (ISO base/3 bolts high mount, 108mm), PHB (3 bolts low mount, 96mm). Built for trucks, construction, mining, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM822HB Series Flattop Beacon delivers professional-grade warning performance with 16 high-power 5W super bright LEDs across 8 mounting configurations. All models feature ECE R65 TB2 rotation, ECE R65 TB2 double flash, and ECE R10 certification — providing maximum versatility for any safety protocol. Select models include synchronization capability for coordinated multi-beacon setups.
Built for demanding environments, each beacon features IP66 waterproof protection and operates reliably from -30°C to +50°C. The uniform 115×78mm flattop cover design ensures consistent visibility. Available in flexible pipe (AHB), single bolt (EHB), magnetic (GHB), magnetic/3 bolts (HHB), flexible & permanent (IHB), ISO base/3 bolts (KHB), ISO base/3 bolts high mount (MHB), and 3 bolts low mount (PHB) — heights from 96mm to 217mm. Wide DC 12-24V compatibility ensures reliable performance on trucks, construction vehicles, mining equipment, agricultural machinery, and emergency response units.
| Model | Mount Type | Height | Flash Modes | Sync | Cert. |
|---|---|---|---|---|---|

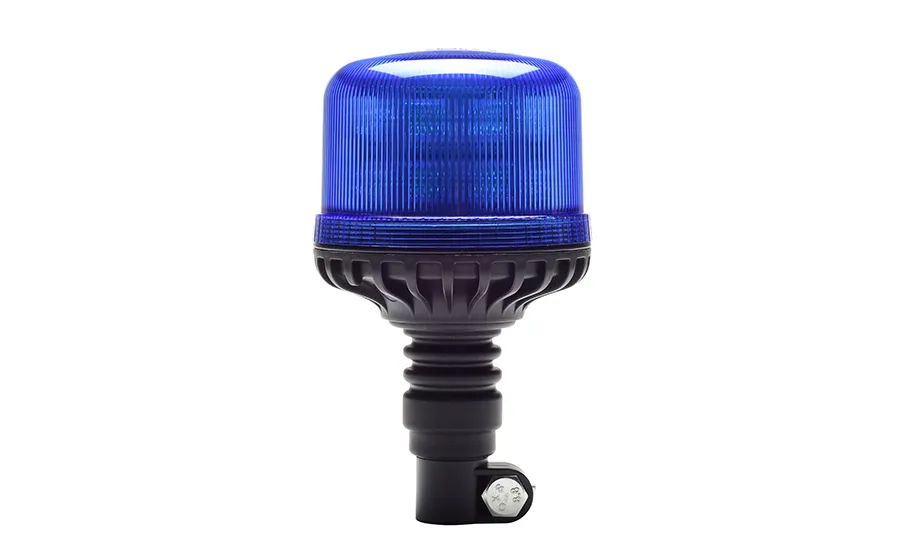

| SM822AHB | Flexible Pipe | 194mm | Rotation+Double | — | TB2/R10 |

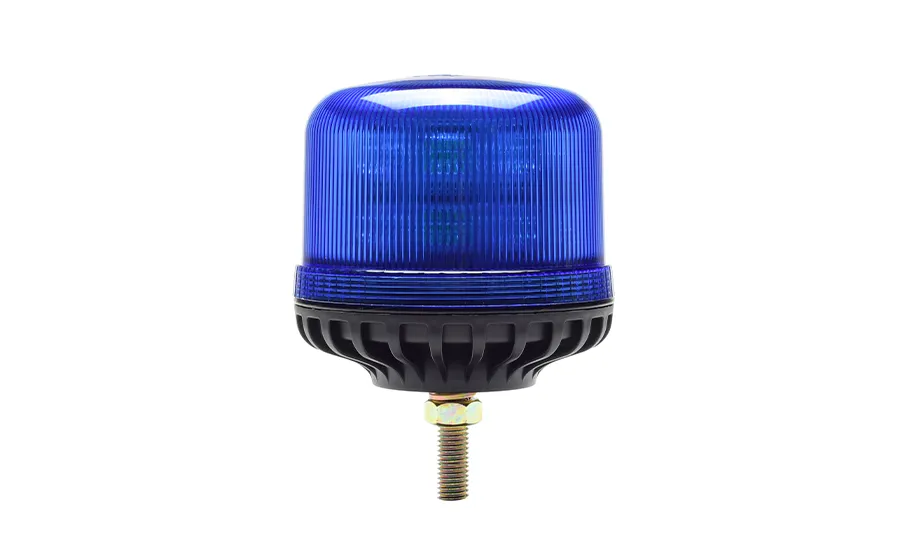

| SM822EHB | Single Bolt | 147mm | Rotation+Double | ✓ | TB2/R10 |

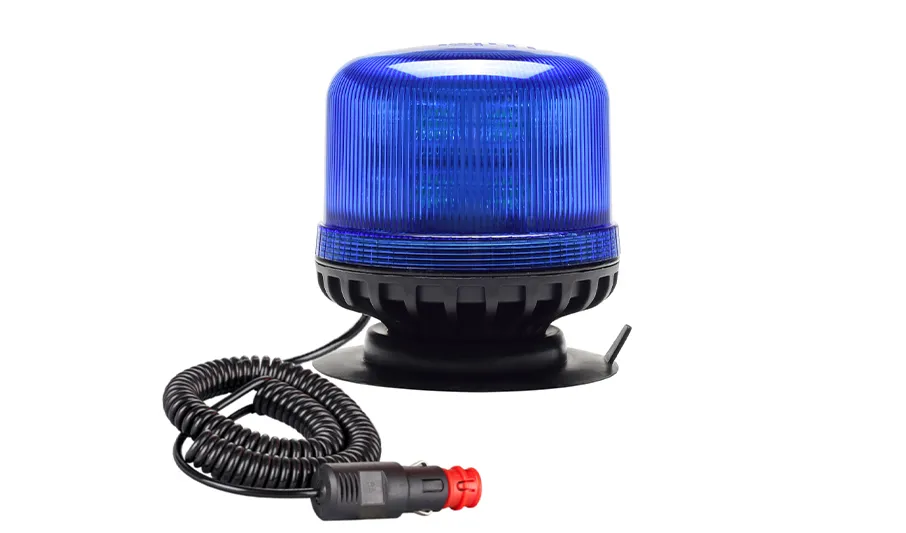

| SM822GHB | Magnetic | 128mm | Rotation+Double | — | TB2/R10 |

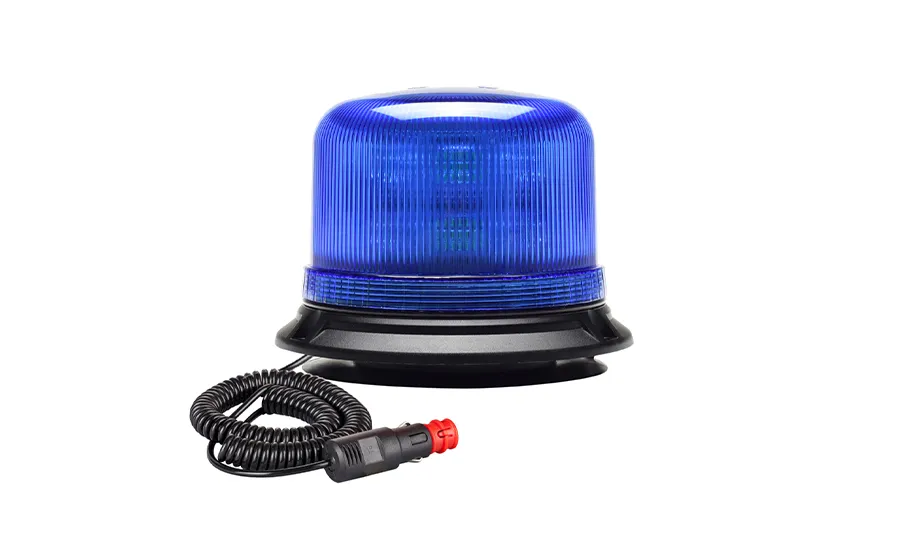

| SM822HHB | Magnetic/3 Bolts | 111mm | Rotation+Double | — | TB2/R10 |

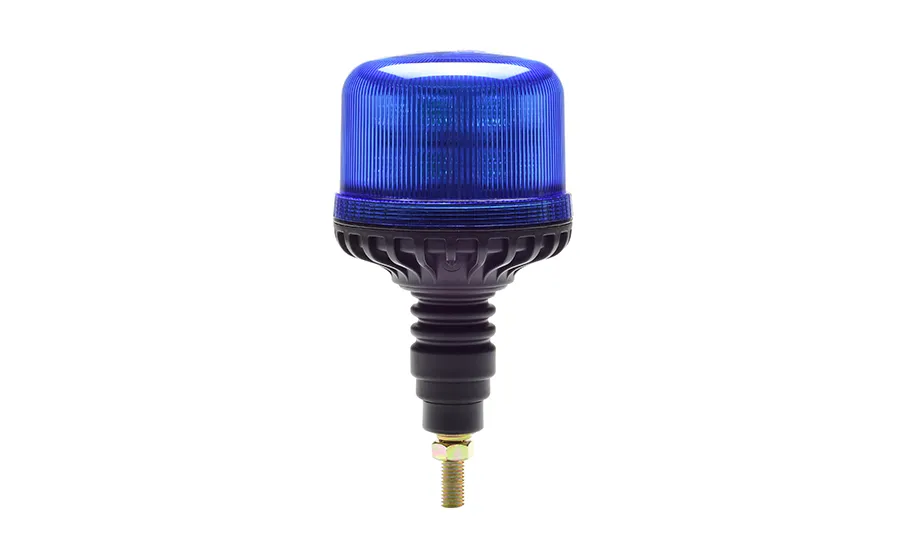

| SM822IHB | Flexible & Permanent | 217mm | Rotation+Double | ✓ | TB2/R10 |

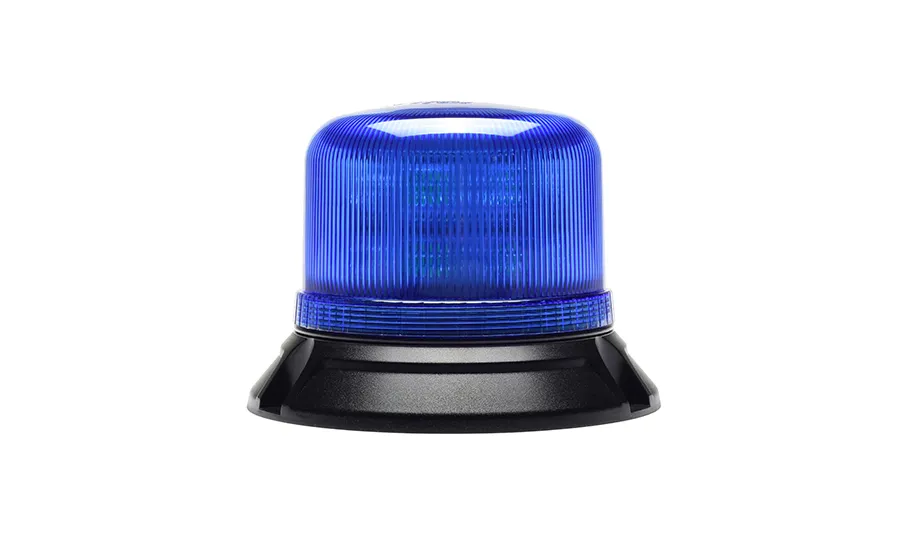

| SM822KHB | ISO Base/3 Bolts | 108mm | Rotation+Double | ✓ | TB2/R10 |

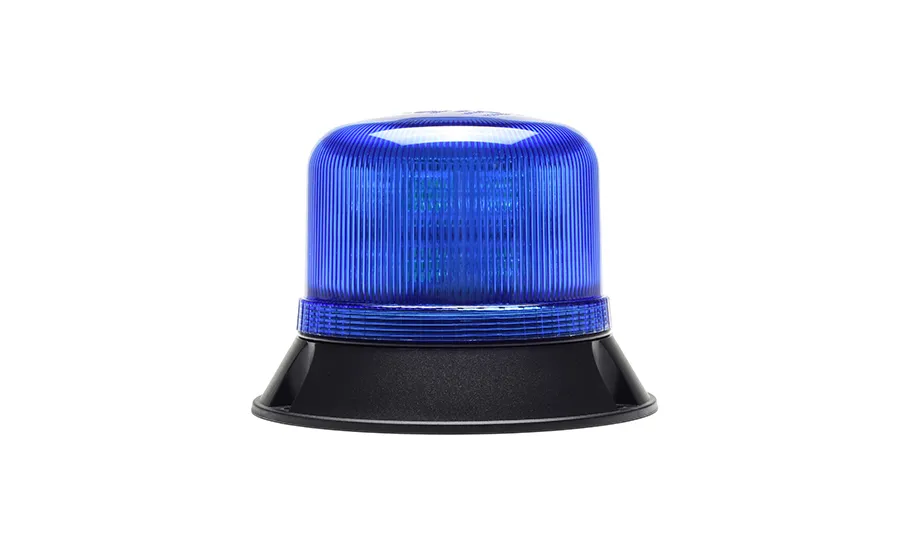

| SM822MHB | ISO Base/3 Bolts High | 108mm | Rotation+Double | ✓ | TB2/R10 |

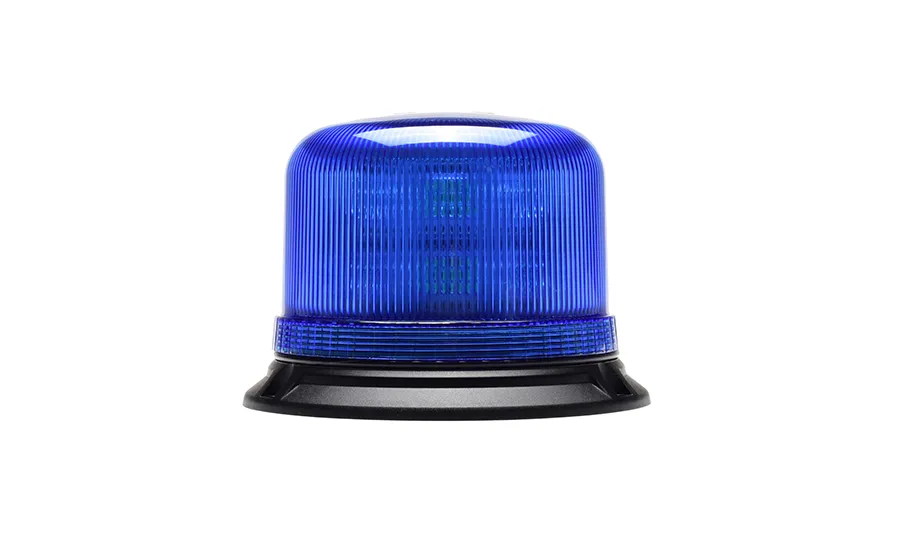

| SM822PHB | 3 Bolts Low Mount | 96mm | Rotation+Double | ✓ | TB2/R10 |
| Parameter | Specification |
|---|---|
| Product Series | SM822HB Flattop Beacon (8 Models) |
| LED Configuration | 16 × 5W Super Bright LEDs |
| Flash Modes | ECE R65 TB2 Rotation / ECE R65 TB2 Double Flash |
| Synchronization | Available on EHB, IHB, KHB, MHB, PHB |
| Cover Dimensions | 115mm × 78mm (All Models) |
| Heights | AHB:194 / EHB:147 / GHB:128 / HHB:111 / IHB:217 / KHB:108 / MHB:108 / PHB:96 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65 TB2, ECE R10 |
| Ingress Protection | IP66 Waterproof |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / Magnetic+3 Bolts / Flexible+Permanent / ISO Base+3 Bolts / ISO Base High / 3 Bolts Low |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
