SM809 Series micro beacon — 9 mounting options, all IP66 waterproof. All models share a 126×115mm cover with 39 super bright LEDs, ECE R65 120 flashes per minute, ECE R10 certified, and DC 12-24V wide voltage. Heights: AP (flexible pipe, 238mm), BP (pipe, 206mm), CP (flexible low, 183mm), DP (flexible spigot base, 220mm), EP (single bolt, 195mm), GP (magnetic, 171mm), HP (magnetic/3 bolts, 167mm), IP (flexible & permanent low profile, 262mm), PP (3 bolts, 153mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

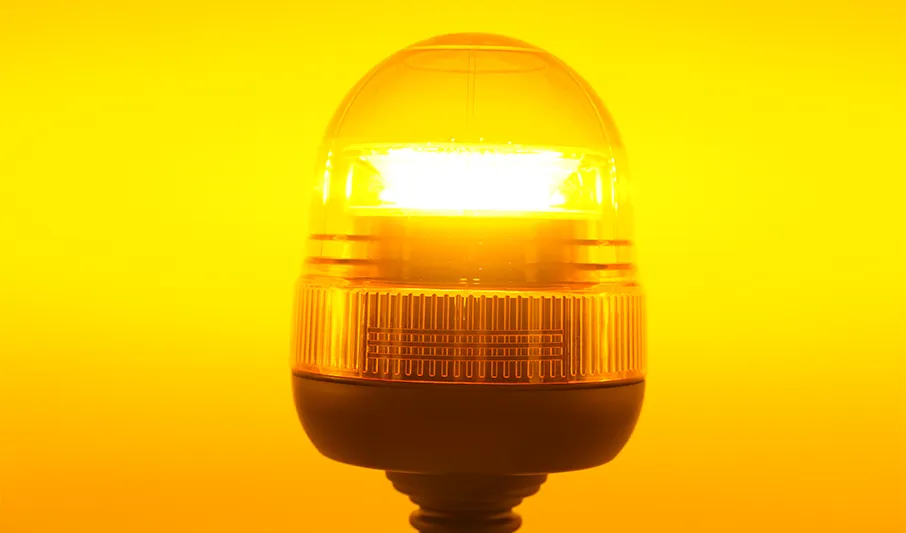

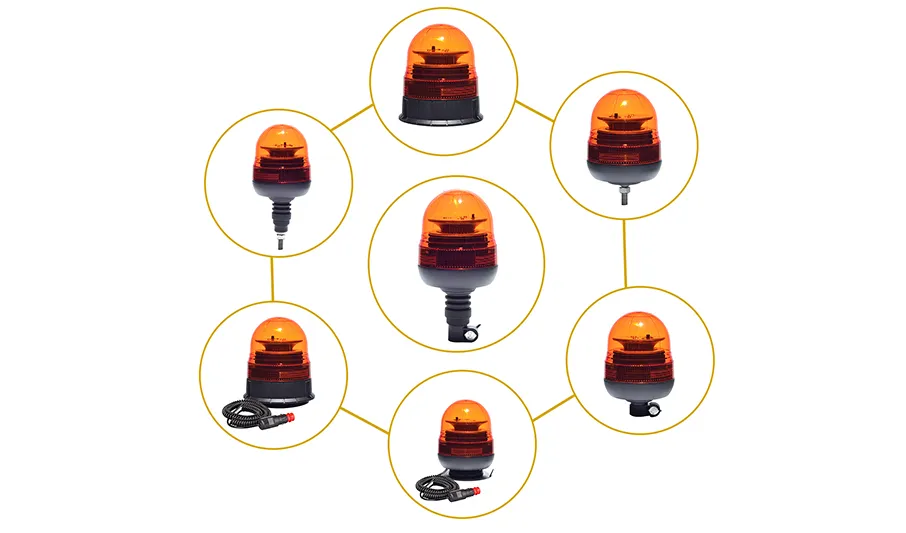

The SM809 Series Micro Beacon delivers reliable warning performance with 9 mounting configurations — all featuring IP66 waterproof protection for maximum durability. Every model shares 39 super bright LEDs, ECE R65 120 flashes per minute, ECE R10 certified, and wide DC 12-24V voltage compatibility.
The uniform 126×115mm cover ensures consistent visibility across all mounting styles, with heights ranging from 153mm to 262mm. Available in flexible pipe (AP), pipe (BP), flexible low mount (CP), flexible spigot base (DP), single bolt (EP), magnetic (GP), magnetic/3 bolts (HP), flexible & permanent low profile (IP), and 3-bolt (PP) mounts. All operate reliably from -30°C to +50°C. Ideal for trucks, construction vehicles, agricultural machinery, forklifts, and emergency response units.
| Model | Mount Type | Height | Flash | Certification |
|---|---|---|---|---|
| SM809AP | Flexible Pipe Mount | 238mm | 120 FPM | ECE R65, ECE R10 |
| SM809BP | Pipe Mount | 206mm | 120 FPM | ECE R65, ECE R10 |

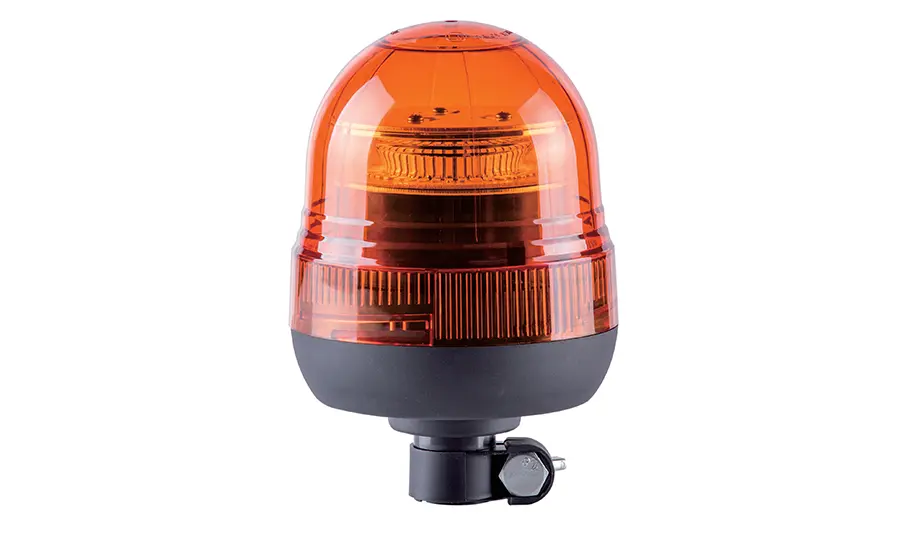

| SM809CP | Flexible Low Mount | 183mm | 120 FPM | ECE R65, ECE R10 |
| SM809DP | Flexible Spigot Base | 220mm | 120 FPM | ECE R65, ECE R10 |

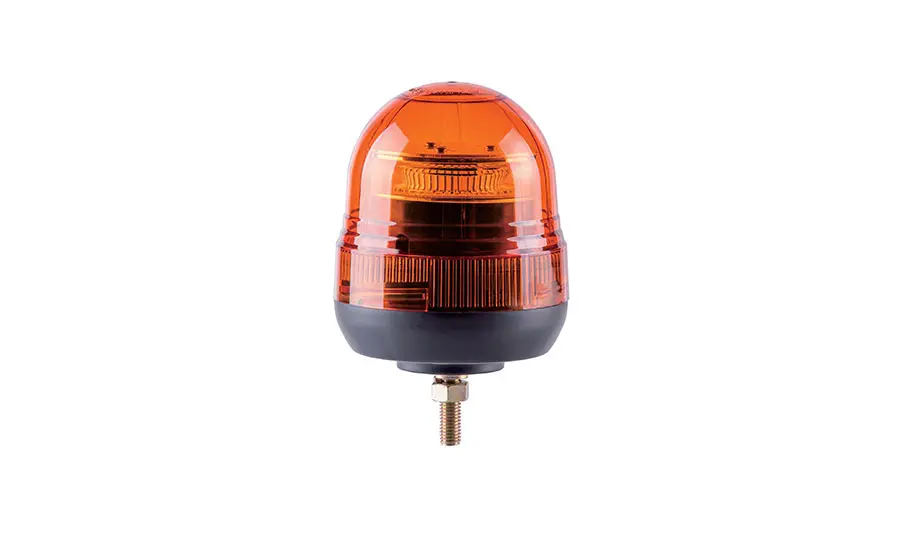

| SM809EP | Single Bolt Mount | 195mm | 120 FPM | ECE R65, ECE R10 |

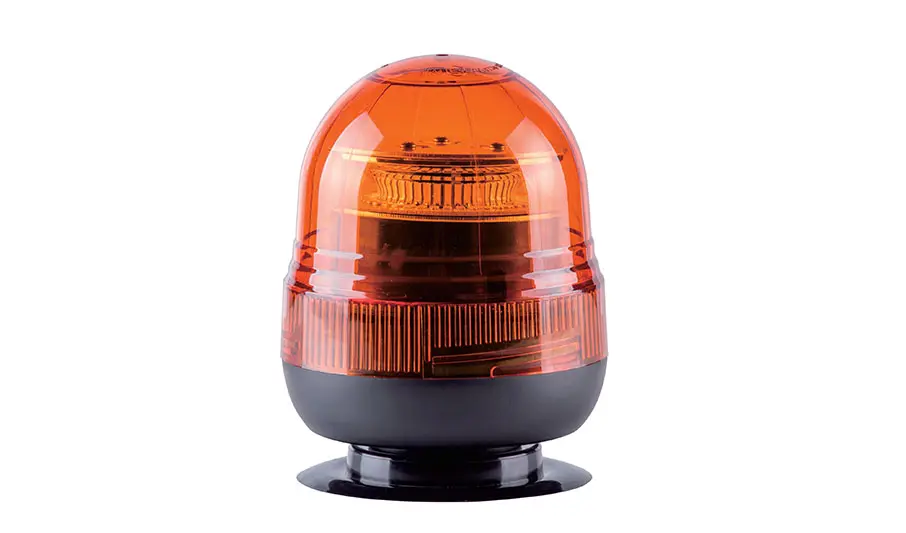

| SM809GP | Magnetic Mount | 171mm | 120 FPM | ECE R65, ECE R10 |

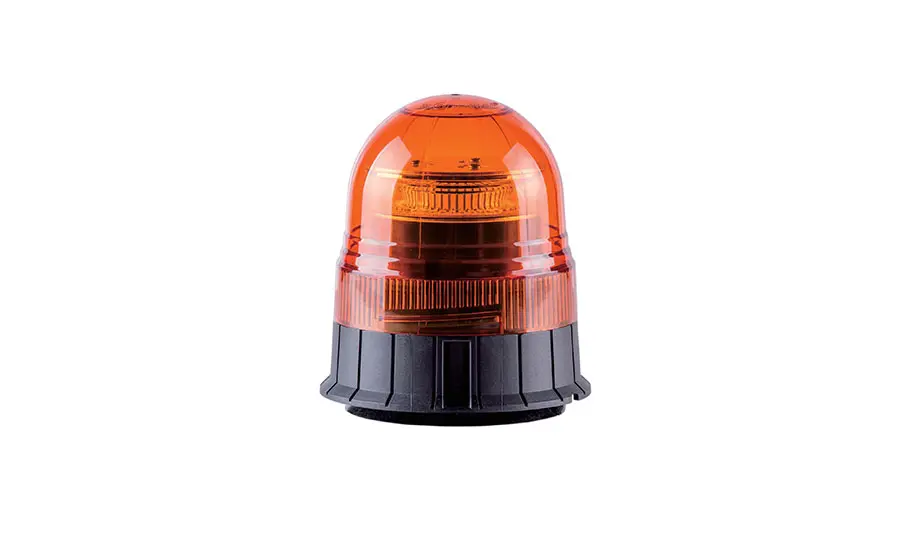

| SM809HP | Magnetic / 3 Bolts Mount | 167mm | 120 FPM | ECE R65, ECE R10 |
| SM809IP | Flexible & Permanent Low Profile | 262mm | 120 FPM | ECE R65, ECE R10 |
| SM809PP | 3 Bolts Mount | 153mm | 120 FPM | ECE R65, ECE R10 |
| Parameter | Specification |
|---|---|
| Product Series | SM809 Micro Beacon (9 Models) |
| LED Configuration | 39 Super Bright LEDs |
| Flash Rate | ECE R65 120 Flashes per Minute |
| Cover Dimensions | 126mm × 115mm (All Models) |
| Heights | AP:238 / BP:206 / CP:183 / DP:220 / EP:195 / GP:171 / HP:167 / IP:262 / PP:153 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Pipe / Flexible Low / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Low Profile / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
