SM808 Series micro beacon — 10 mounting options including a USB rechargeable model. All share a 125×81mm cover with 39 super bright LEDs, ECE R65 certified (single & double flash on most models), ECE R10 certified, IP66 waterproof, and DC 12-24V wide voltage. SM808HP-B adds ECE R65 TA1, USB-C rechargeable with 4hr charge / 7hr runtime, and on/off pattern selection. Heights: AP (flexible pipe, 206mm), BP (pipe, 170mm), CP (flexible low, 151mm), DP (flexible spigot, 189mm), EP (single bolt, 166mm), GP (magnetic, 136mm), HP (magnetic/3 bolts, 130mm), HP-B (rechargeable magnetic, 129mm), IP (low profile, 231mm), PP (3 bolts, 121mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

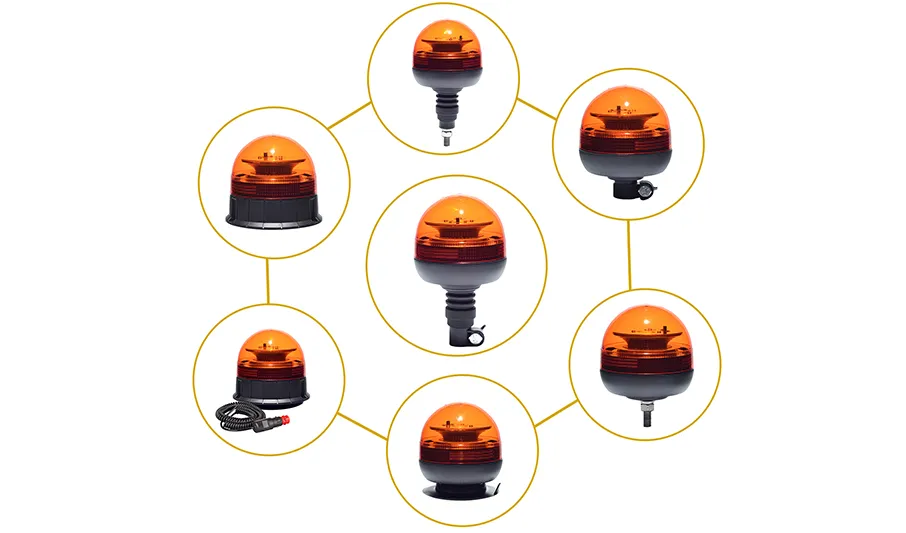

The SM808 Series Micro Beacon offers the most comprehensive mounting selection with 10 configurations — including a USB rechargeable model for maximum flexibility. All models feature 39 super bright LEDs, ECE R65 and ECE R10 certified, with IP66 waterproof protection across every variant. Most models support both 120 single and double flashes per minute, with DC 12-24V wide voltage compatibility.
The standout SM808HP-B rechargeable model features ECE R65 TA1 certification, USB-C charging with 4-hour full charge and 7-hour runtime, plus on/off flash pattern selection — perfect for temporary deployments and vehicles without wired power. Available mounts: flexible pipe (AP), pipe (BP), flexible low (CP), flexible spigot (DP), single bolt (EP), magnetic (GP), magnetic/3 bolts (HP), rechargeable magnetic (HP-B), low profile (IP), and 3 bolts (PP). Uniform 125×81mm cover, heights from 121mm to 231mm. Operates from -30°C to +50°C on trucks, tractors, construction vehicles, and emergency units.
| Model | Mount Type | Height | Flash | Power | Cert. |
|---|---|---|---|---|---|

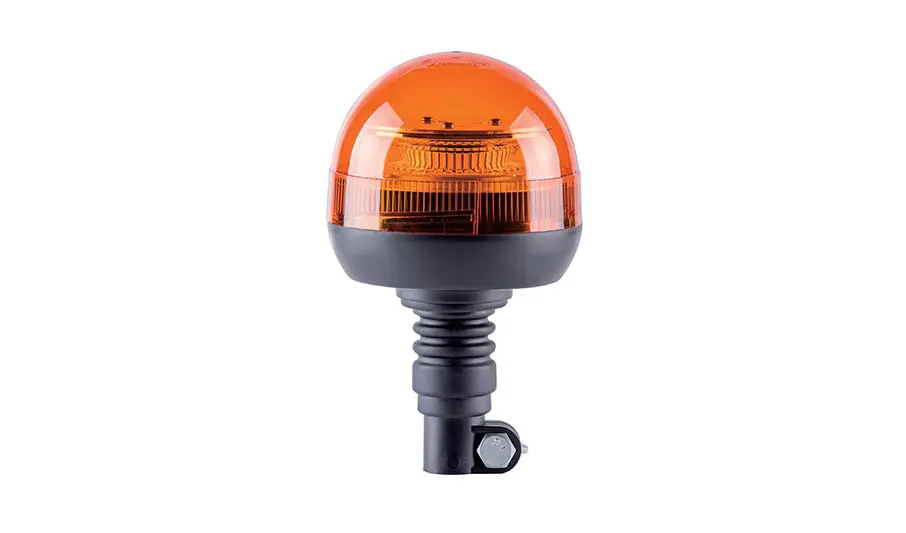

| SM808AP | Flexible Pipe | 206mm | Single/Double | DC 12-24V | R65/R10 |
| SM808BP | Pipe Mount | 170mm | 120 FPM | DC 12-24V | R65/R10 |

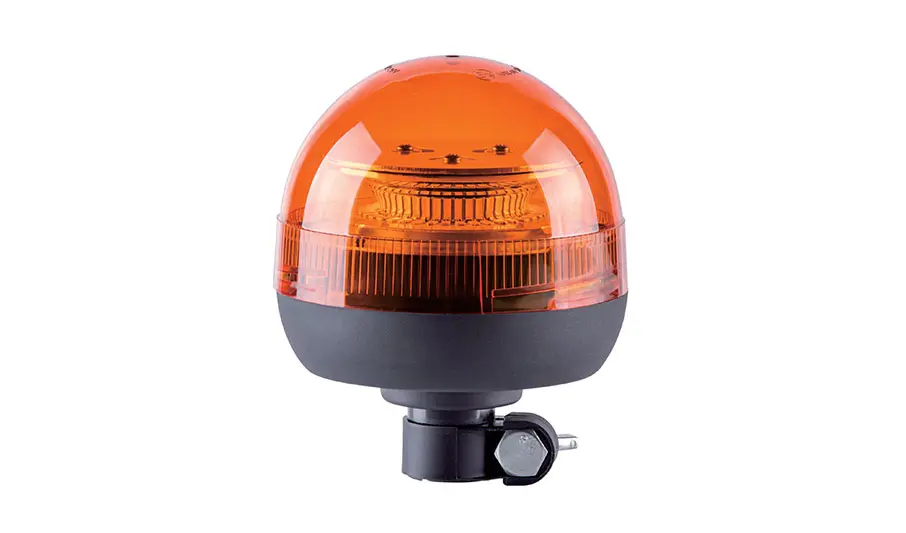

| SM808CP | Flexible Low | 151mm | Single/Double | DC 12-24V | R65/R10 |
| SM808DP | Flexible Spigot | 189mm | 120 FPM | DC 12-24V | R65/R10 |

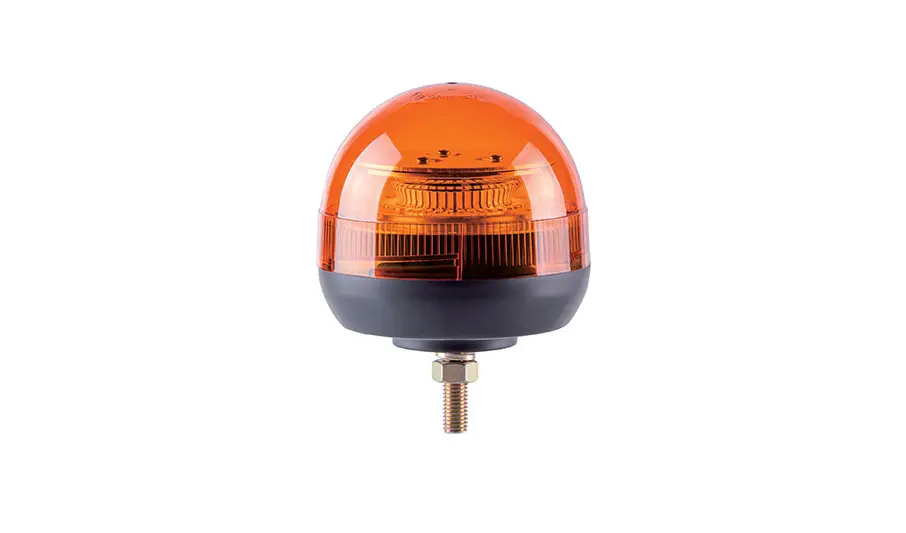

| SM808EP | Single Bolt | 166mm | Single/Double | DC 12-24V | R65/R10 |

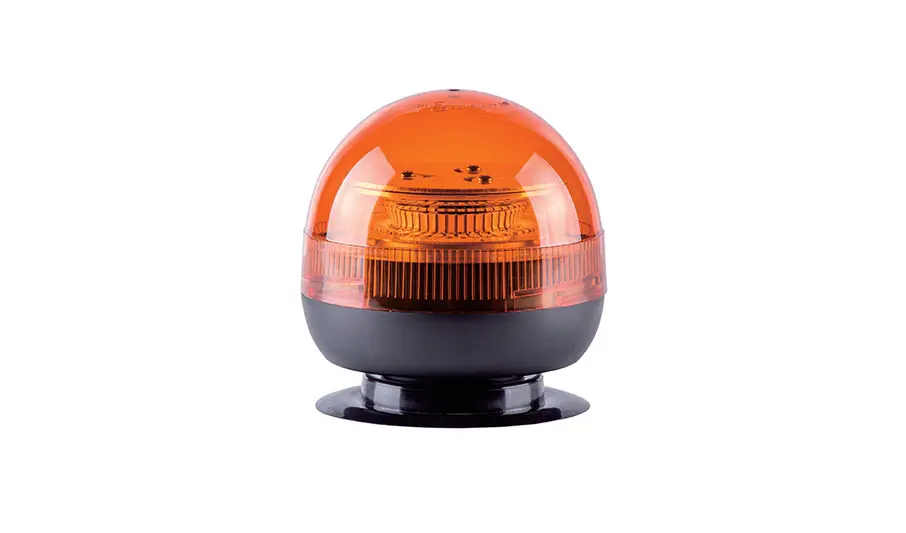

| SM808GP | Magnetic | 136mm | Single/Double | DC 12-24V | R65/R10 |

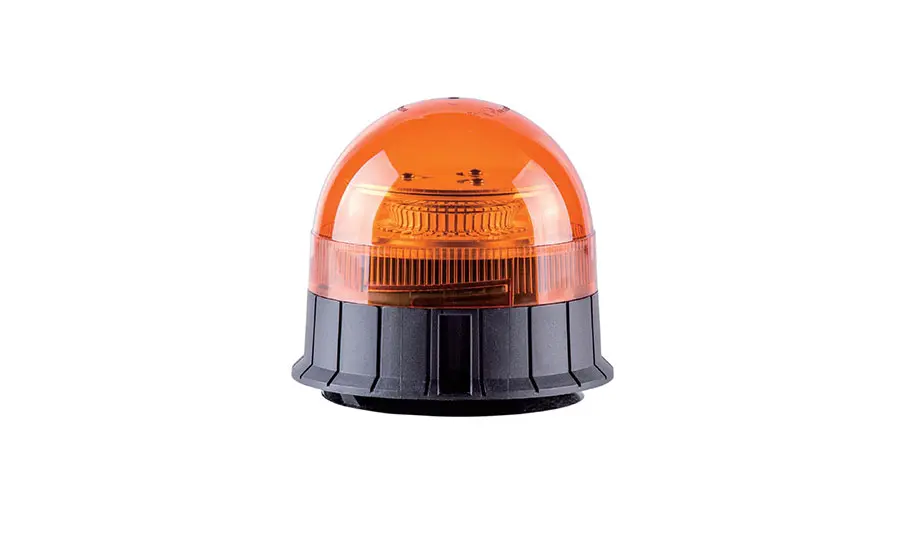

| SM808HP | Magnetic/3 Bolts | 130mm | Single/Double | DC 12-24V | R65/R10 |
| SM808HP-B | Rechargeable Magnetic | 129mm | 120 FPM | USB-C 4hr/7hr | TA1/R10 |
| SM808IP | Low Profile | 231mm | 120 FPM | DC 12-24V | R65/R10 |
| SM808PP | 3 Bolts | 121mm | Single/Double | DC 12-24V | R65/R10 |
| Parameter | Specification |
|---|---|
| Product Series | SM808 Micro Beacon (10 Models) |
| LED Configuration | 39 Super Bright LEDs |
| Flash Rate | ECE R65 120 Single & Double Flashes per Minute (select models: 120 FPM) |
| Cover Dimensions | 125mm × 81mm (All Models) |
| Heights | AP:206 / BP:170 / CP:151 / DP:189 / EP:166 / GP:136 / HP:130 / HP-B:129 / IP:231 / PP:121 (mm) |
| Operating Voltage | DC 12 V - 24 V (SM808HP-B: USB Rechargeable, 4hr charge / 7hr runtime) |
| Certifications | ECE R65, ECE R10 (SM808HP-B: ECE R65 TA1, ECE R10) |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Pipe / Flexible Low / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Rechargeable Magnetic / Low Profile / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
