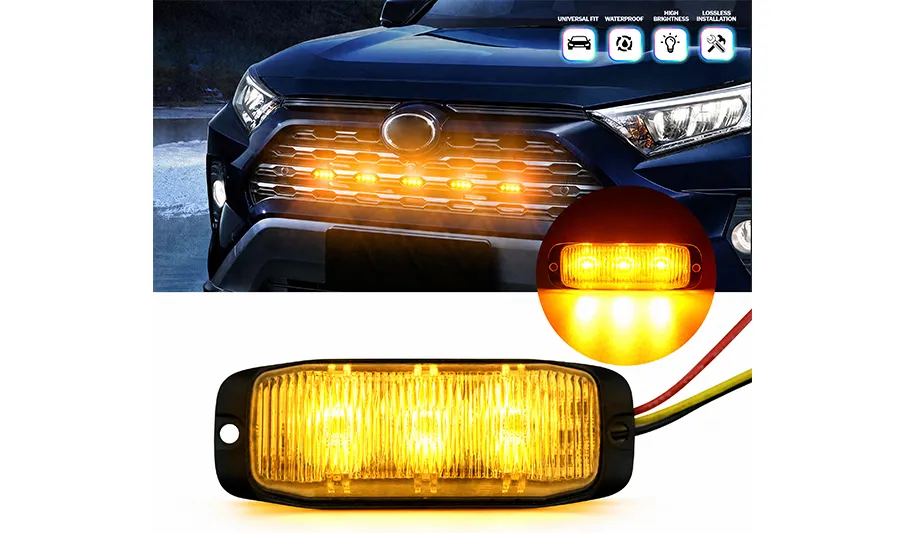

SM3015/SM3016 Series surface mount LED light heads — SM3015/SM3015B (3 LED, 91×32mm) and SM3016/SM3016B (4 LED, 101×32mm). Amber models with 3W LEDs, Blue models with 5W high-power LEDs. All feature ECE R65 and ECE R10 certified, IP67 waterproof, 19 selectable flash patterns with memory function, 4 cables, and wide DC 12V-24V voltage. Compact design built for emergency vehicles, utility trucks, forklifts, and heavy-duty equipment.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

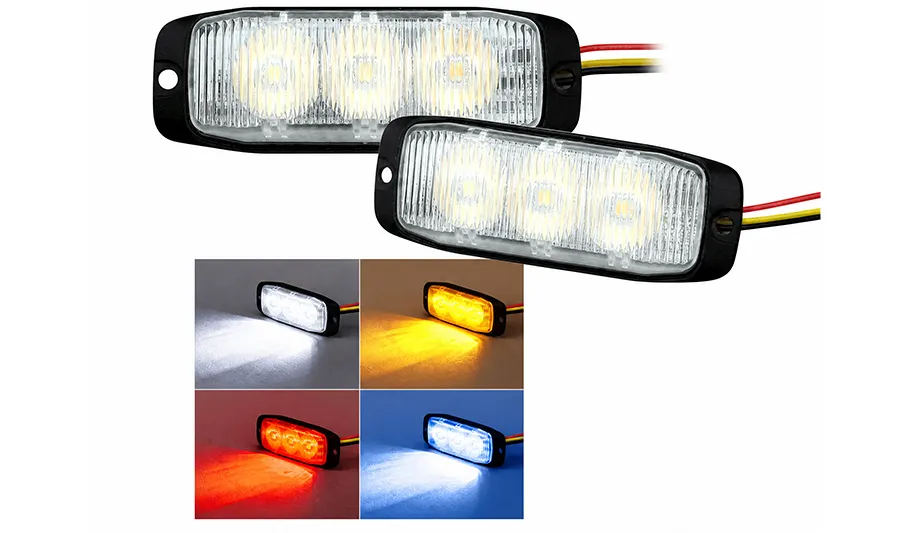

The SM3015/SM3016 Series surface mount LED light heads deliver powerful warning and signalling in a compact, low-profile design. Available in 3 LED (SM3015/SM3015B, 91×32mm) and 4 LED (SM3016/SM3016B, 101×32mm) configurations. Amber models feature 3W LEDs while Blue models are equipped with 5W high-power LEDs for maximum visibility. All models are ECE R65 and ECE R10 certified with 19 selectable flash patterns and memory function.

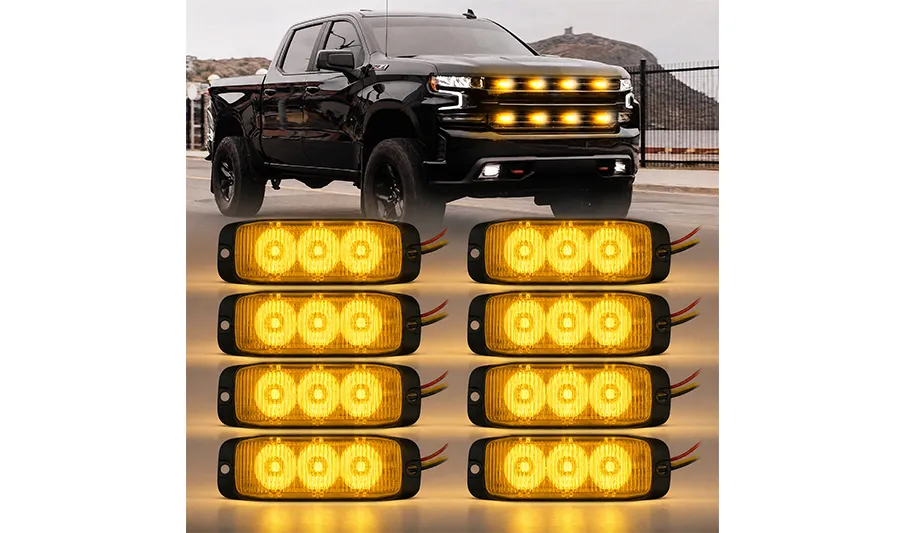

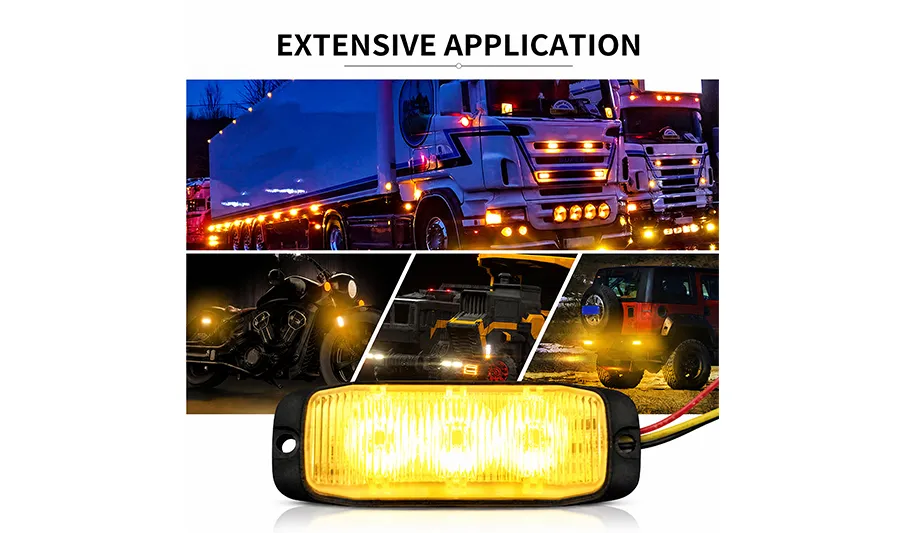

Built for demanding environments, this series features IP67 waterproof protection, 4 cables for flexible installation, and wide DC 12V-24V voltage compatibility. Ideal for emergency vehicles, utility trucks, construction equipment, forklifts, agricultural machinery, and heavy-duty applications requiring reliable warning lights in a compact footprint.
| Model | LED | Color | Power/LED | Dimensions | Cert. |
|---|---|---|---|---|---|

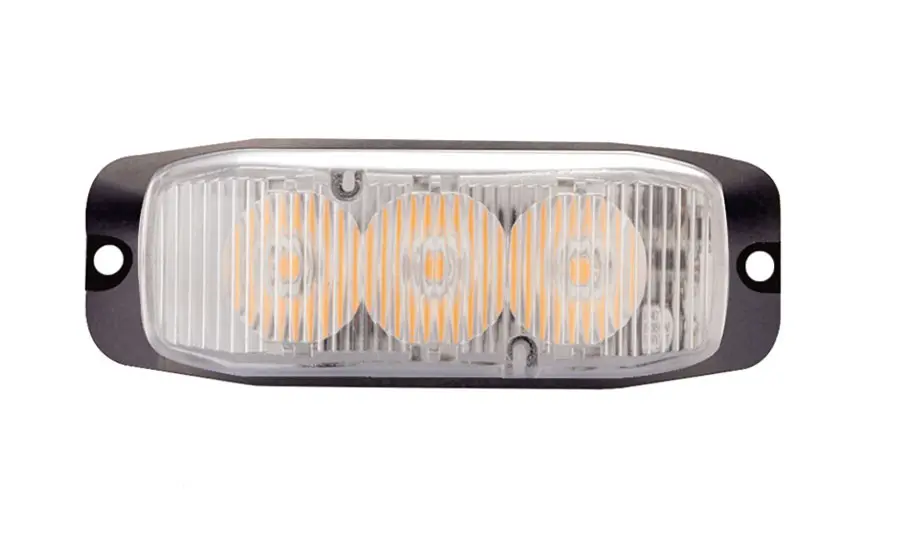

| SM3015 | 3 LED | Amber | 3W | 91×32mm | ECE R65/R10 |

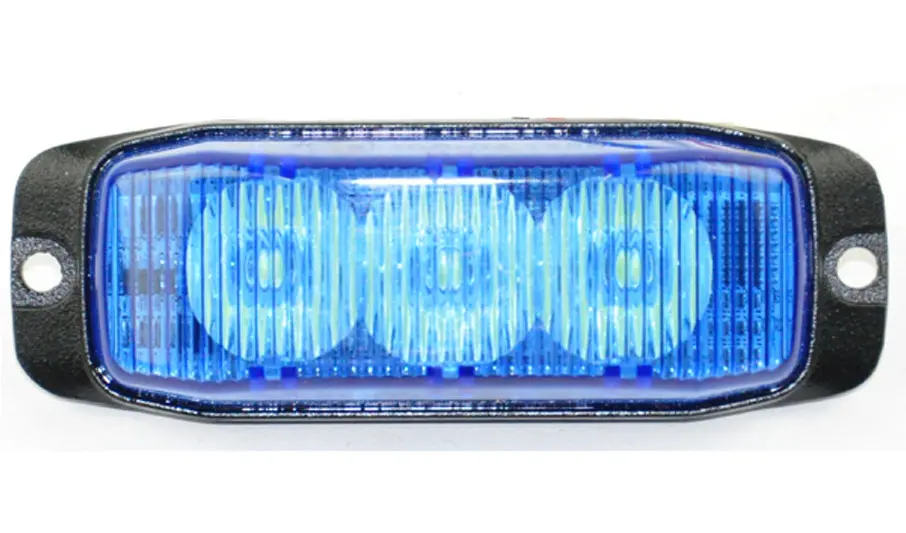

| SM3015B | 3 LED | Blue | 5W | 91×32mm | ECE R65/R10 |

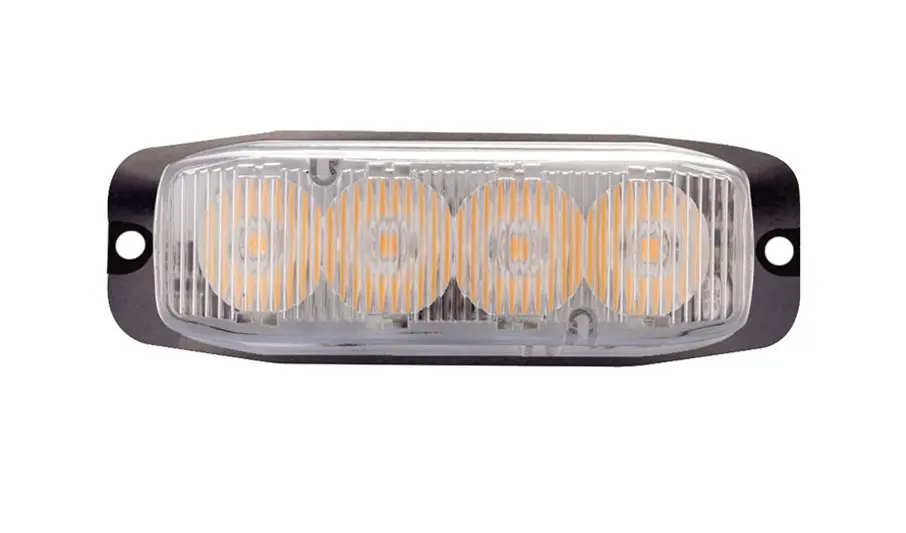

| SM3016 | 4 LED | Amber | 3W | 101×32mm | ECE R65/R10 |

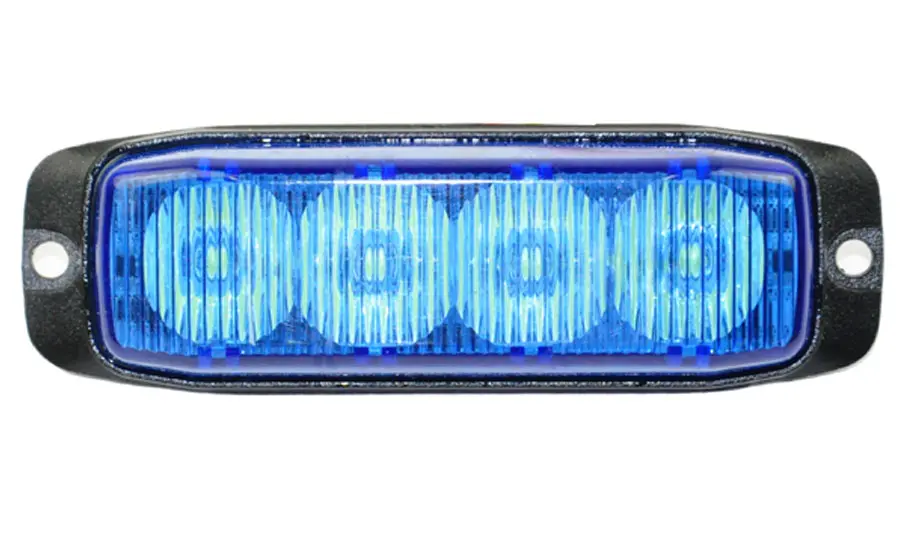

| SM3016B | 4 LED | Blue | 5W | 101×32mm | ECE R65/R10 |

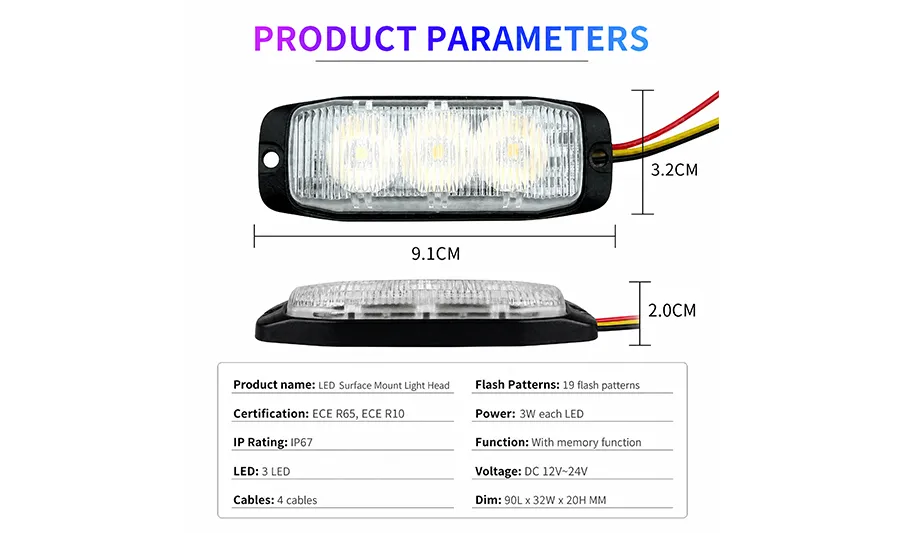

| Parameter | Specification |
|---|---|
| Product Series | SM3015/SM3016 Surface Mount LED Light Head |
| Available Models | SM3015 (3 LED Amber 3W) / SM3015B (3 LED Blue 5W) / SM3016 (4 LED Amber 3W) / SM3016B (4 LED Blue 5W) |

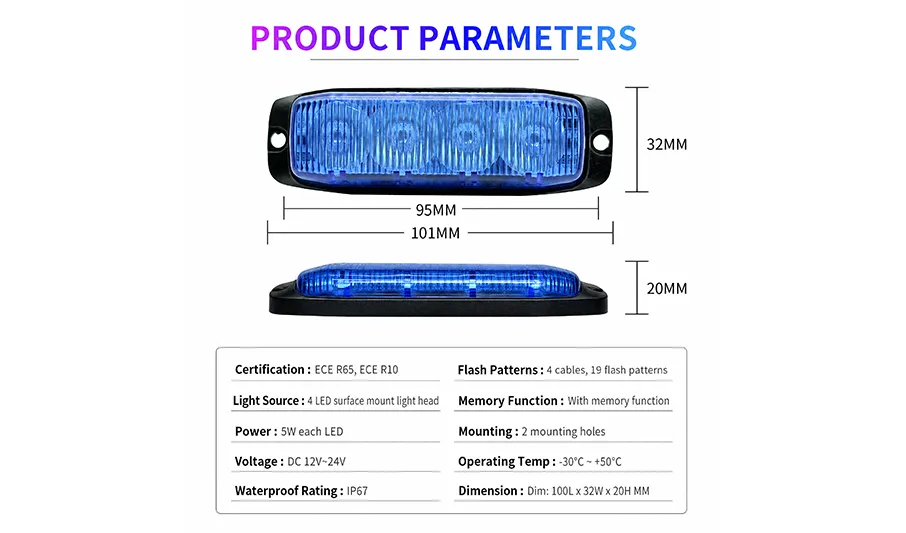

| Dimensions | SM3015/SM3015B: 91×32mm | SM3016/SM3016B: 101×32mm |
| LED Power | Amber Models: 3W per LED | Blue Models: 5W per LED |
| Flash Patterns | 19 Selectable Patterns |
| Memory Function | Yes - Recalls Last Pattern After Power Cycle |
| Cables | 4 Cables |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |

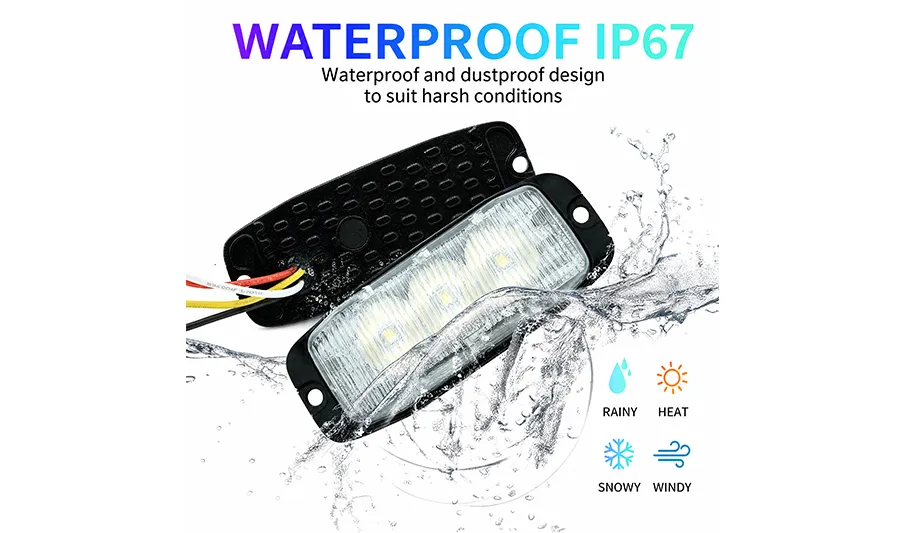

| Ingress Protection | IP67 Waterproof |
| Mounting Type | Surface Mount |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
