SM811 Series micro beacon — 8 mounting options, all IP66 waterproof. Width 126mm across all models, heights from 103mm to 211mm. Features 39 super bright LEDs, ECE R65 120 flashes per minute, ECE R10 certified, DC 12-24V wide voltage. Choose from flexible pipe, single bolt, magnetic, 3-bolt, low mount, rechargeable magnetic (USB, 7hr runtime), and flexible & permanent low profile. Built for trucks, construction, forklifts, and emergency vehicles in temperatures from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

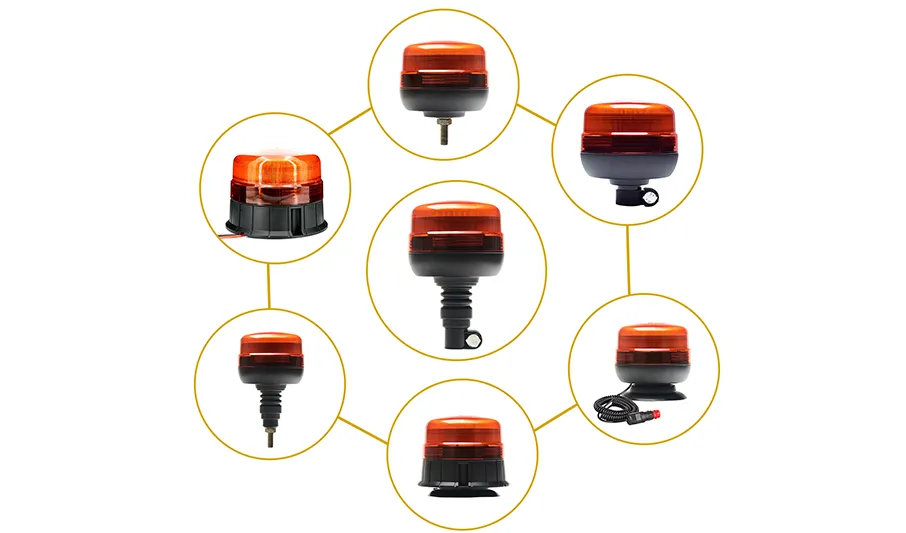

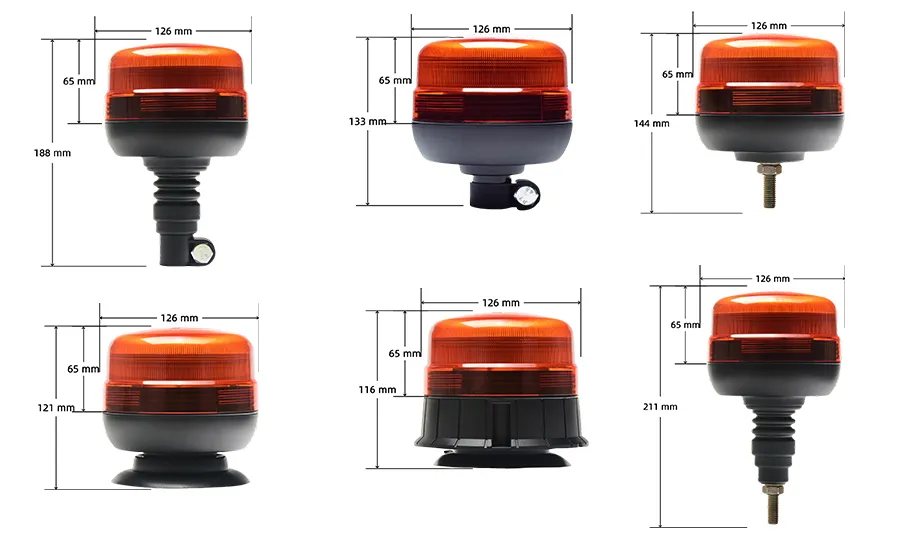

The SM811 Series Micro Beacon offers 8 distinct mounting configurations — all sharing the same 126mm width, IP66 waterproof protection, and core performance of 39 super bright LEDs at ECE R65 120 flashes per minute. Height varies by model from 103mm to 211mm to suit any installation requirement. ECE R10 certified with DC 12-24V wide voltage compatibility.

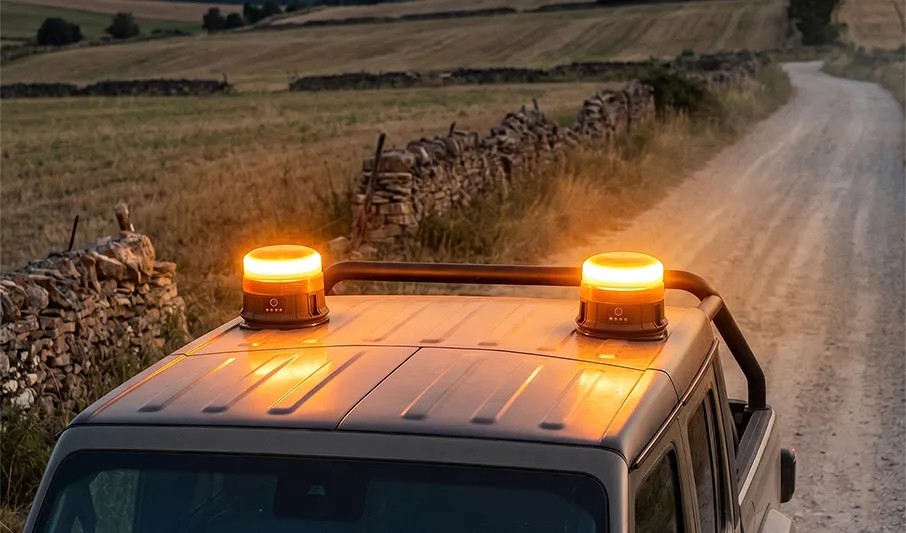

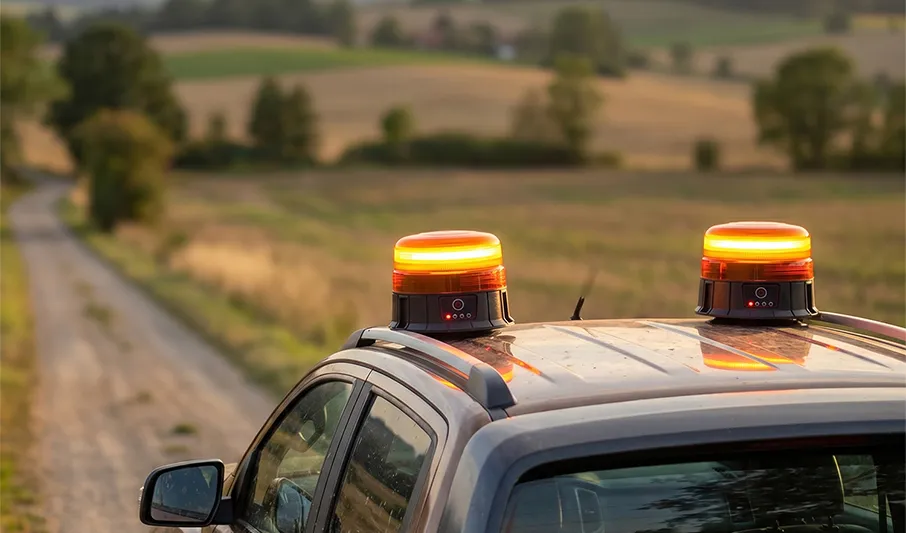

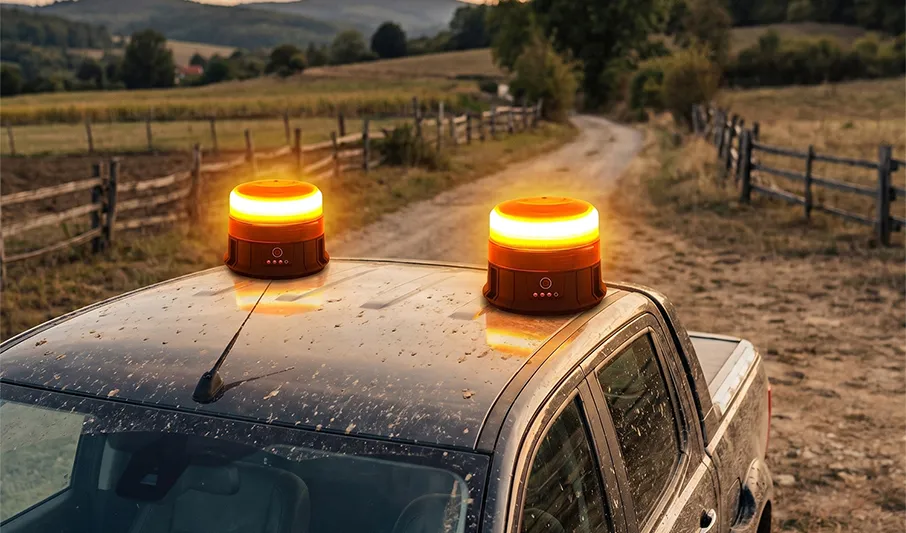

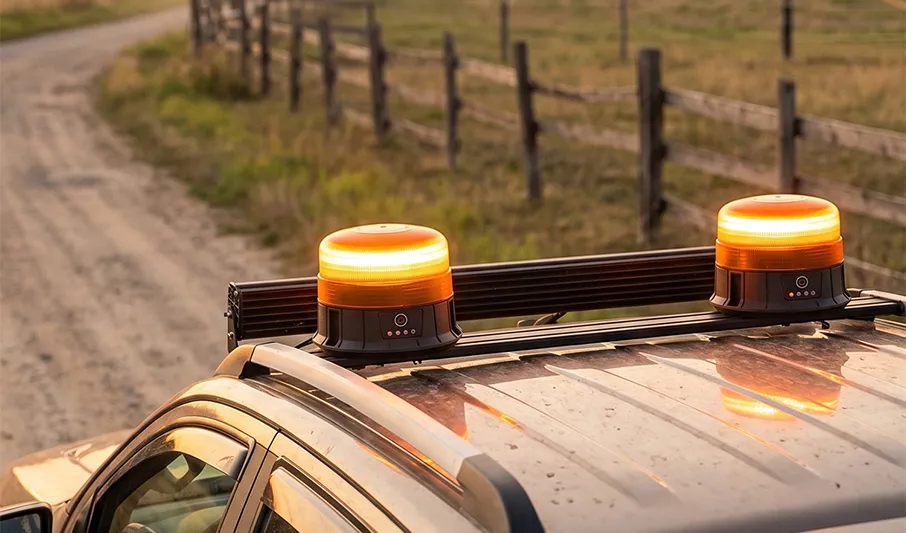

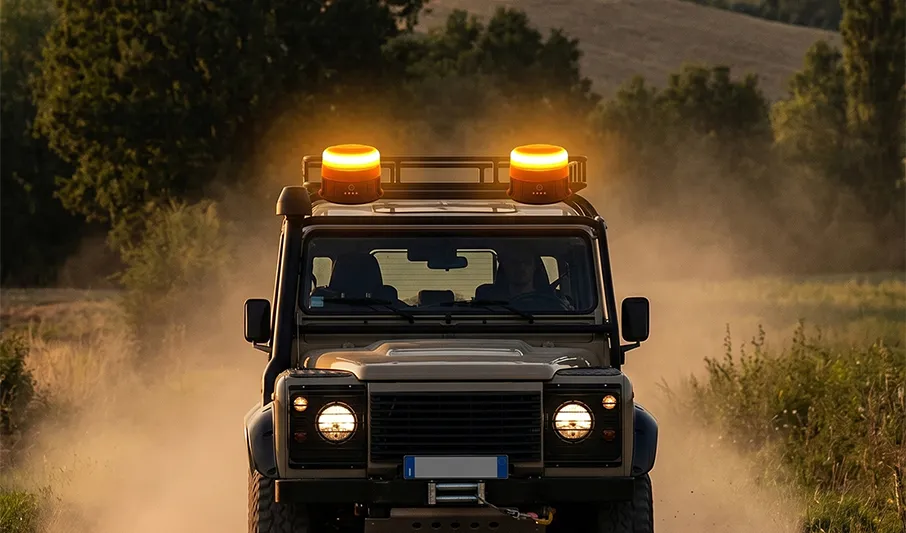

The SM811HP-B rechargeable model adds ECE R65 TA1 certification, USB rechargeable battery with 7-hour runtime on a 4-hour charge, and on/off flash pattern selection — perfect for temporary deployments. All models operate reliably in extreme temperatures from -30°C to +50°C, making them ideal for trucks, construction equipment, forklifts, agricultural machinery, and emergency response vehicles.
| Model | Mount Type | Height | Power |
|---|---|---|---|

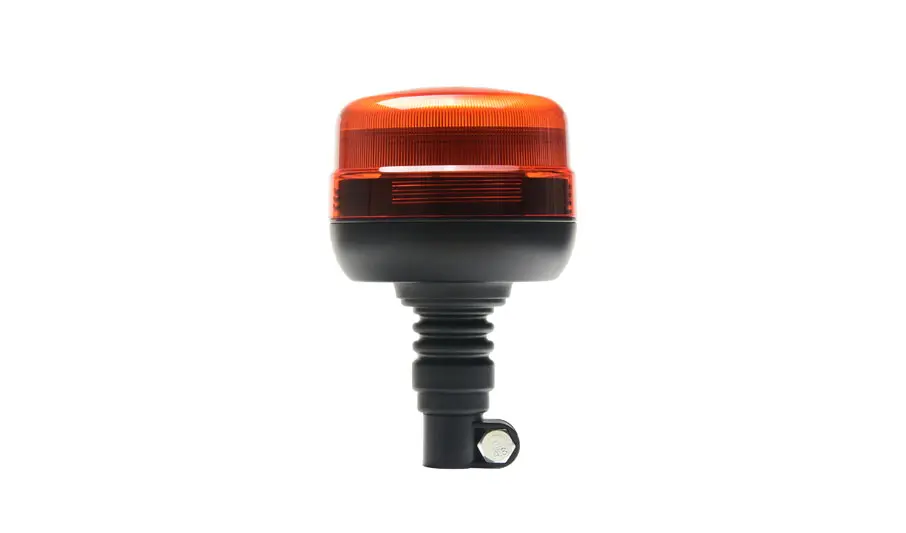

| SM811AP | Flexible Pipe Mount | 188mm | DC 12-24V |

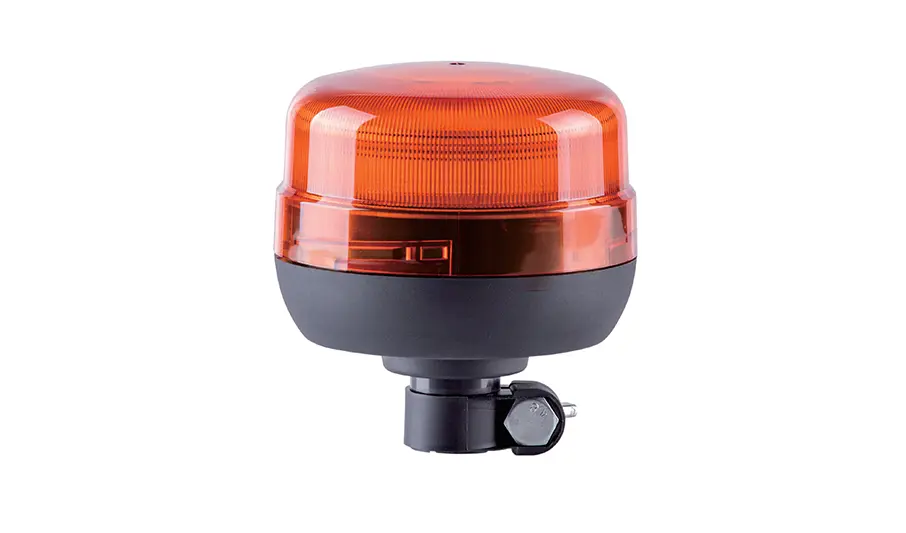

| SM811CP | Flexible Low Mount | 133mm | DC 12-24V |

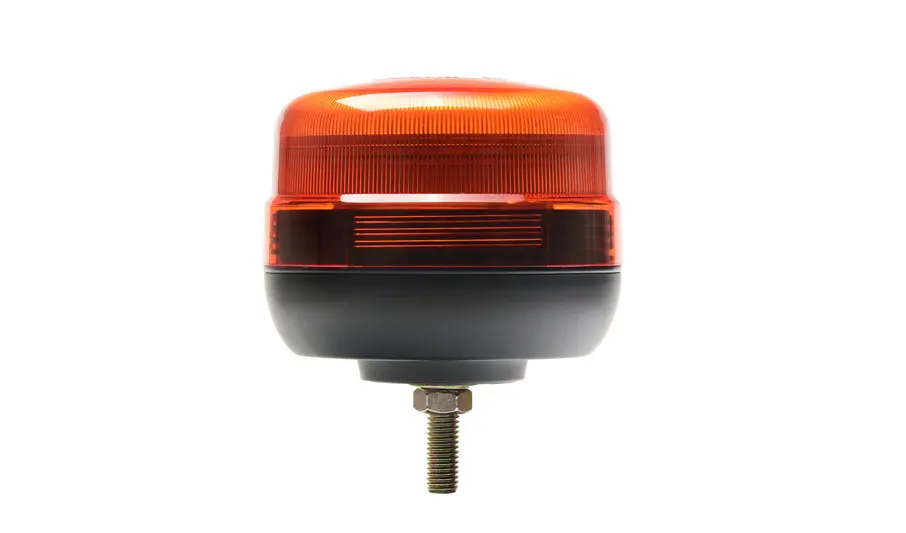

| SM811EP | Single Bolt Mount | 144mm | DC 12-24V |

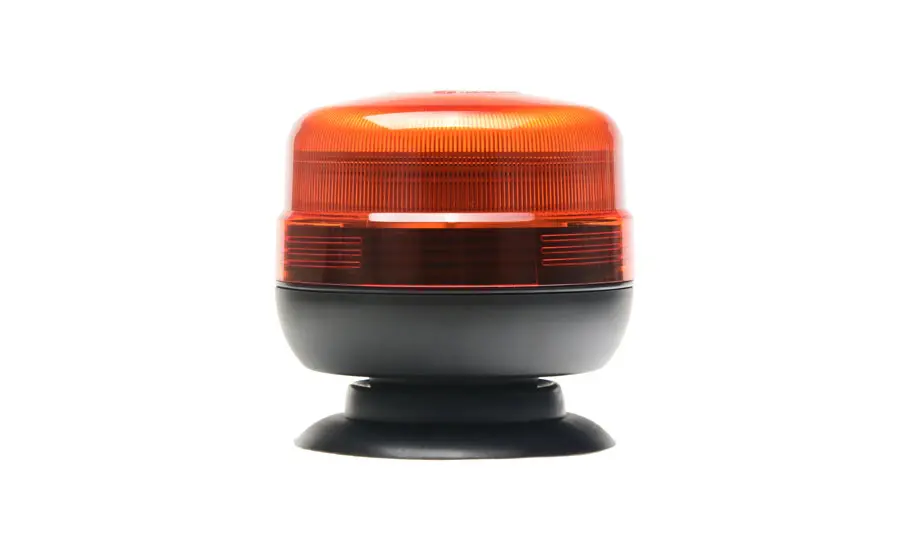

| SM811GP | Magnetic Mount | 121mm | DC 12-24V |

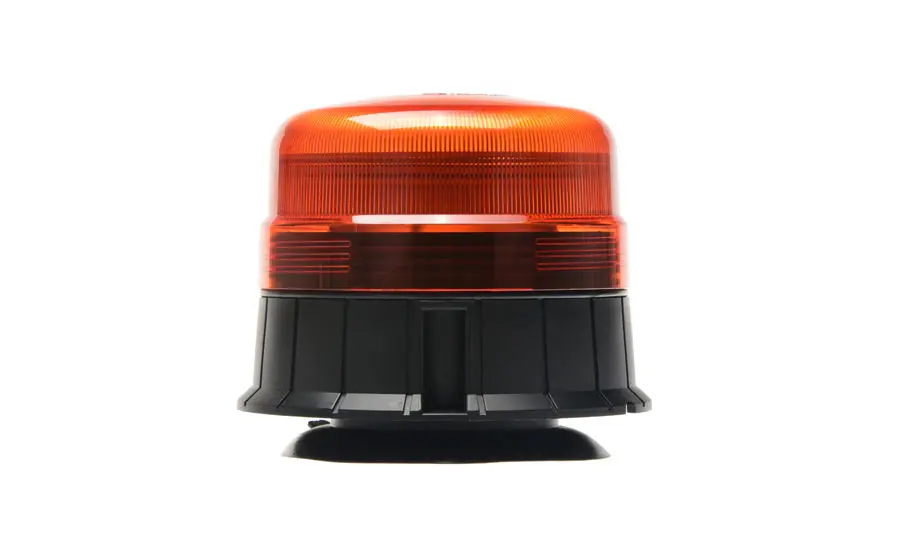

| SM811HP | Magnetic / 3 Bolts Mount | 116mm | DC 12-24V |
| SM811HP-B | Rechargeable Magnetic (USB, 7hr Runtime) | 114mm | USB Rechargeable |
| SM811IP | Flexible & Permanent Low Profile | 211mm | DC 12-24V |
| SM811PP | 3 Bolts Mount | 103mm | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM811 Micro Beacon (8 Models) |
| Width (All Models) | 126mm |
| Heights | AP:188 / CP:133 / EP:144 / GP:121 / HP:116 / HP-B:114 / IP:211 / PP:103 (mm) |
| LED Configuration | 39 Super Bright LEDs |
| Flash Rate | ECE R65 120 Flashes per Minute |
| Certifications | ECE R65, ECE R10 (SM811HP-B: ECE R65 TA1, ECE R10) |
| Operating Voltage | DC 12 V - 24 V (SM811HP-B: USB Rechargeable) |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| SM811HP-B Battery | Full charge 4 hours, 7 hour duration, USB Rechargeable, On/off flash selection |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / 3 Bolts / Low Mount / Rechargeable Magnetic / Low Profile |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
