6 LED surface mount light head with 20 selectable flash patterns and memory function. Each LED delivers 3W high-power output with ECE R65 TB2 single flash, ECE R10, and SAE J595 Class1 double flash certifications. IP67 waterproof with 4 cables and wide DC 12V-24V voltage — built for emergency vehicles, utility trucks, forklifts, and heavy-duty equipment.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The 6 LED Surface Mount Light Head delivers powerful warning and signalling in a compact, low-profile design. Featuring 6 high-power 3W LEDs with 20 selectable flash patterns and memory function, it is ECE R65 TB2 single flash, ECE R10, and SAE J595 Class1 double flash certified for maximum versatility across global markets.

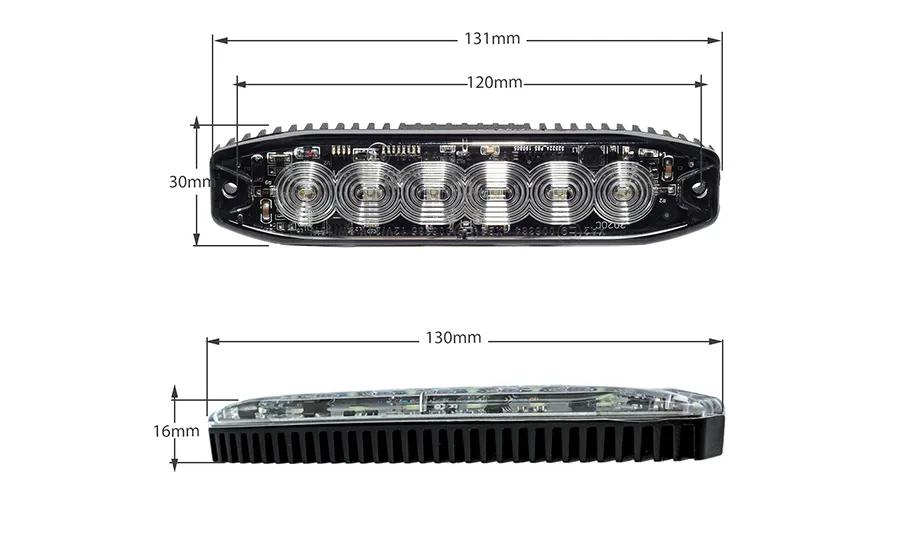

Built for demanding environments, this light head features IP67 waterproof protection, 4 cables for flexible installation, and compact dimensions of 131mm × 30mm × 16mm. Wide DC 12V-24V voltage compatibility ensures reliable performance on emergency vehicles, utility trucks, construction equipment, forklifts, and heavy-duty machinery.
| Parameter | Specification |
|---|---|
| Product Type | 6 LED Surface Mount Light Head |
| LED Configuration | 6 LEDs × 3W High-Power |
| Dimensions (L × H × D) | 131mm × 30mm × 16mm |
| Flash Patterns | 20 Selectable Patterns |
| Memory Function | Yes - Recalls Last Pattern After Power Cycle |
| Cables | 4 Cables |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65 TB2 (Single Flash), ECE R10, SAE J595 Class1 (Double Flash) |
| Ingress Protection | IP67 Waterproof |
| Mounting Type | Surface Mount |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
