SM812CR Series micro beacon with 12 high-power 3W LEDs — 6 mounting options, all IP66 waterproof. All models share a 114×52mm cover, ECE R65 120 flashes per minute, ECE R10 certified, and DC 12-24V wide voltage. Heights: ACR (flexible pipe, 166mm), ECR (single bolt, 124mm), GCR (magnetic, 95mm), HCR (magnetic low profile, 80mm), ICR (flexible & permanent, 191mm), PCR (3 bolts, 69mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM812CR Series Micro Beacon delivers high-intensity warning performance with 12 high-power 3W LEDs across 6 compact mounting configurations — all featuring IP66 waterproof protection. Every model is ECE R65 120 flashes per minute and ECE R10 certified, with wide DC 12-24V voltage compatibility for universal vehicle fitment.
The uniform 114×52mm cover ensures consistent visibility, with heights from a compact 69mm to 191mm. Available in flexible pipe (ACR), single bolt (ECR), magnetic (GCR), magnetic low profile (HCR), flexible & permanent (ICR), and 3-bolt compact (PCR) mounts. All operate reliably from -30°C to +50°C. Ideal for trucks, construction vehicles, forklifts, agricultural machinery, and emergency response units.
| Model | Mount Type | Height | Flash Rate | Voltage |
|---|---|---|---|---|

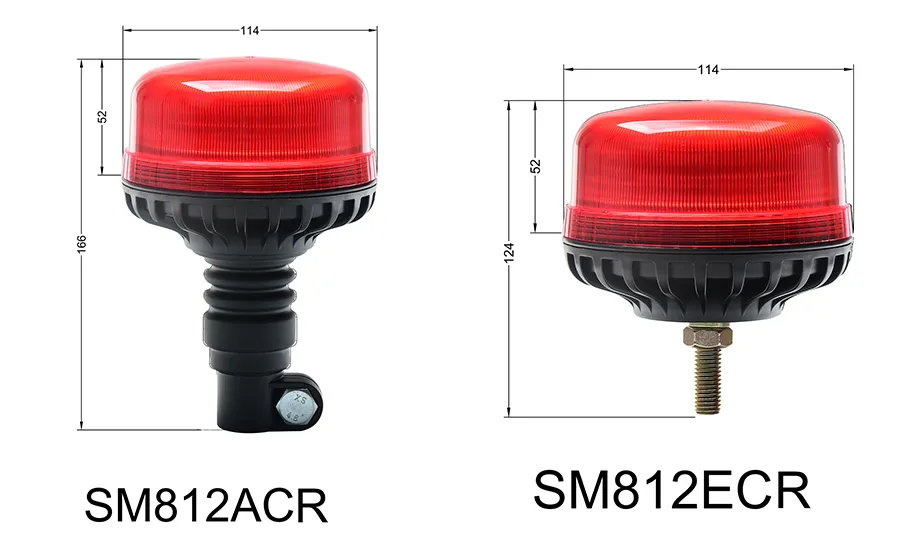

| SM812ACR | Flexible Pipe Mount | 166mm | 120 FPM | DC 12-24V |
| SM812ECR | Single Bolt Mount | 124mm | 120 FPM | DC 12-24V |

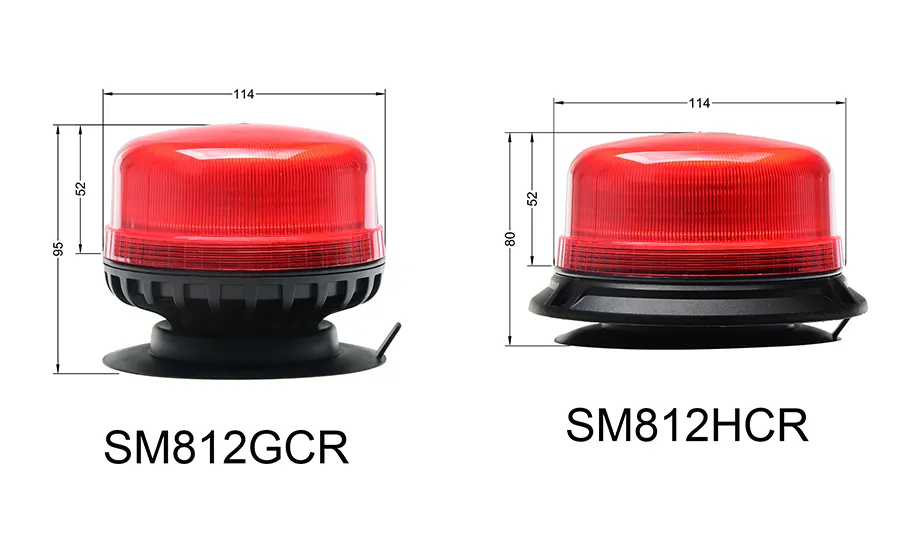

| SM812GCR | Magnetic Mount | 95mm | 120 FPM | DC 12-24V |
| SM812HCR | Magnetic Mount (Low Profile) | 80mm | 120 FPM | DC 12-24V |

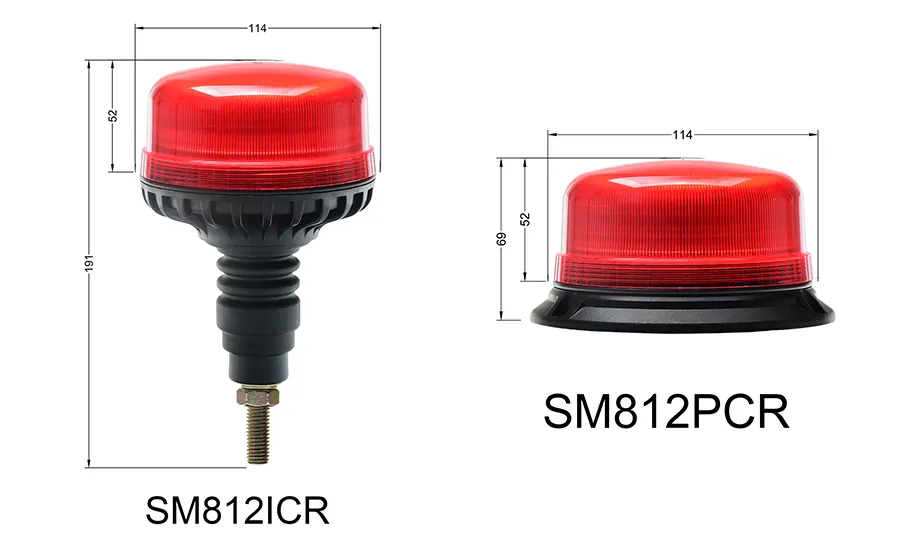

| SM812ICR | Flexible & Permanent Mount | 191mm | 120 FPM | DC 12-24V |
| SM812PCR | 3 Bolts Mount (Compact) | 69mm | 120 FPM | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM812CR Micro Beacon (6 Models) |
| LED Configuration | 12 × 3W High-Power LEDs |
| Flash Rate | ECE R65 120 Flashes per Minute |
| Cover Dimensions | 114mm × 52mm (All Models) |
| Heights | ACR:166 / ECR:124 / GCR:95 / HCR:80 / ICR:191 / PCR:69 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / Magnetic Low Profile / Flexible & Permanent / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
