SM808HB Series micro beacon — 8 mounting options. All models share a 125×81mm cover with 8 high-power 3W LEDs, ECE R65 120 flashes per minute (360° revolving flash / intermittent flash), ECE R10 certified, and DC 12-24V wide voltage. Heights: AHB (flexible pipe, 206mm), BHB (pipe, 170mm), CHB (flexible low, 151mm), DHB (flexible spigot base, 189mm), EHB (single bolt, 166mm), GHB (magnetic, 136mm), HHB (magnetic/3 bolts, 130mm), IHB (flexible & permanent, 231mm). Built for trucks, construction, agriculture, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome
The SM808HB Series Micro Beacon delivers versatile 360° warning performance with 8 high-power 3W LEDs across 8 mounting configurations. All models feature ECE R65 120 flashes per minute with both revolving and intermittent flash modes, ECE R10 certified, and wide DC 12-24V voltage compatibility for universal vehicle fitment.
The uniform 125×81mm cover ensures consistent visibility, with heights ranging from 130mm to 231mm. Available in flexible pipe (AHB), pipe (BHB), flexible low mount (CHB), flexible spigot base (DHB), single bolt (EHB), magnetic (GHB), magnetic/3 bolts (HHB), and flexible & permanent (IHB) mounts. All operate reliably from -30°C to +50°C. Ideal for trucks, construction vehicles, agricultural machinery, forklifts, and emergency response units.
| Model | Mount Type | Height | Flash Mode | Certification |
|---|---|---|---|---|
| SM808AHB | Flexible Pipe Mount | 206mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM808BHB | Pipe Mount | 170mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

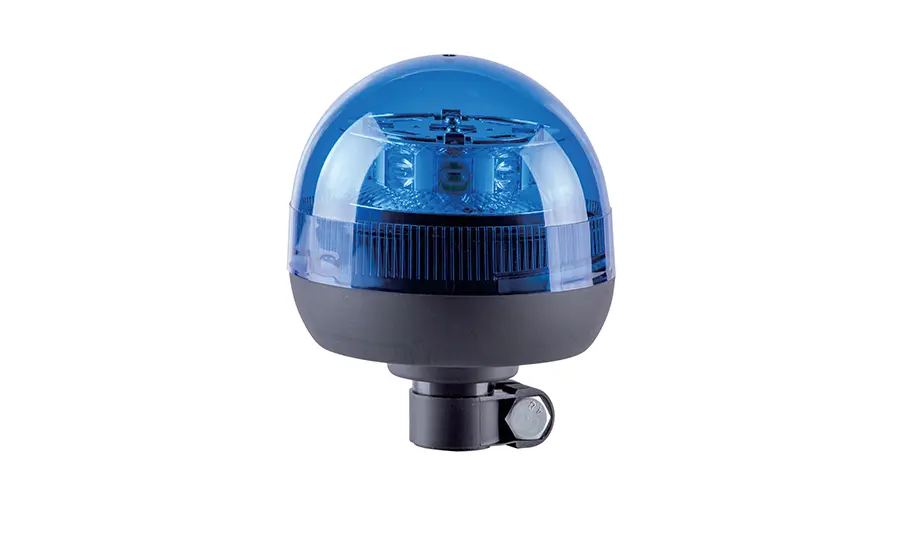

| SM808CHB | Flexible Low Mount | 151mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM808DHB | Flexible Spigot Base | 189mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

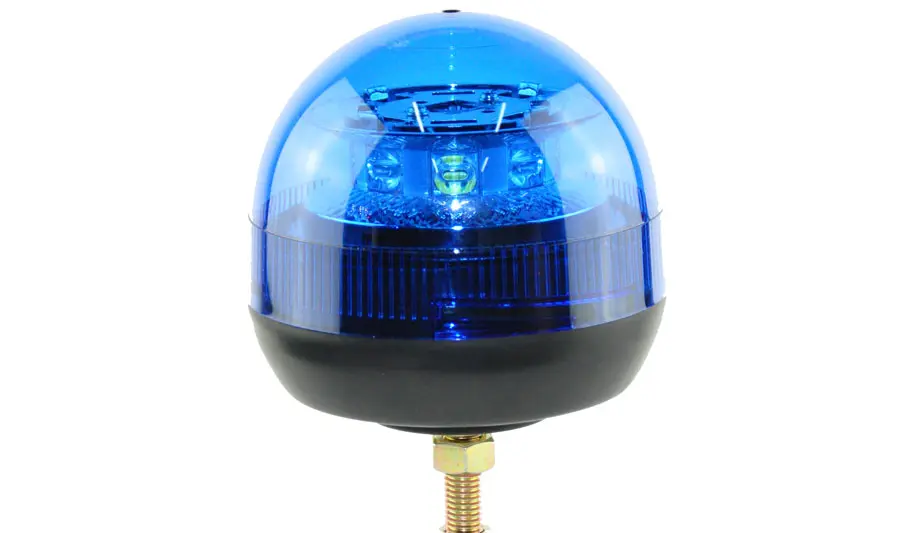

| SM808EHB | Single Bolt Mount | 166mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

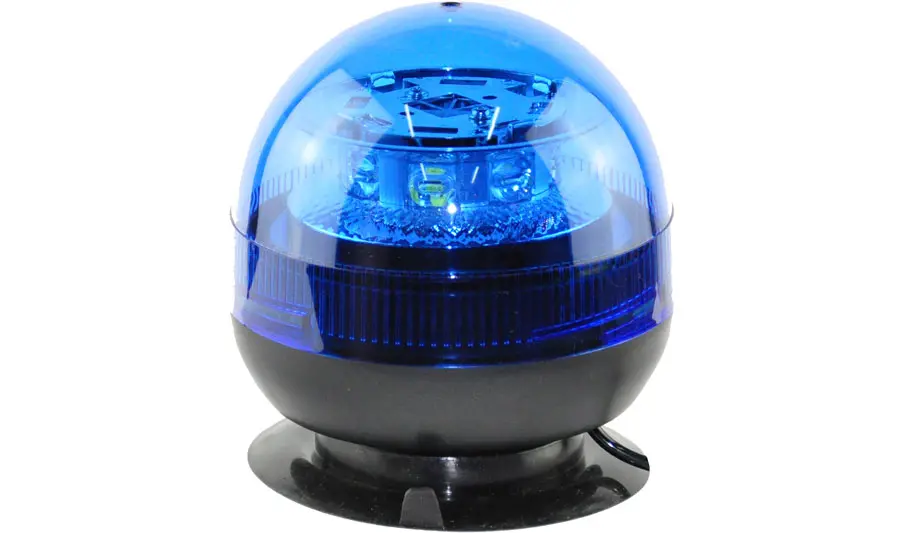

| SM808GHB | Magnetic Mount | 136mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |

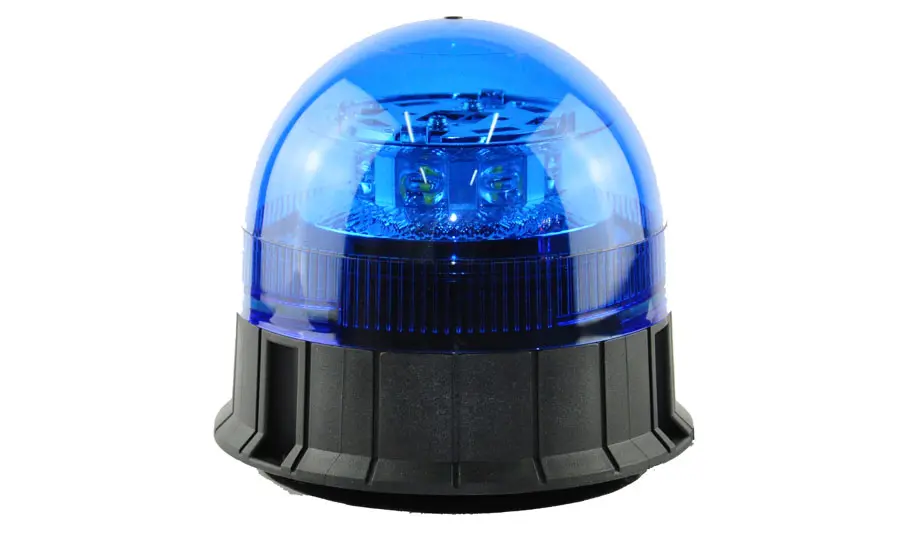

| SM808HHB | Magnetic / 3 Bolts Mount | 130mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| SM808IHB | Flexible & Permanent Mount | 231mm | 360° Revolving / Intermittent | ECE R65, ECE R10 |
| Parameter | Specification |
|---|---|
| Product Series | SM808HB Micro Beacon (8 Models) |
| LED Configuration | 8 × 3W High-Power LEDs |
| Flash Modes | 360° Revolving Flash / Intermittent Flash |
| Flash Rate | ECE R65 120 Flashes per Minute |
| Cover Dimensions | 125mm × 81mm (All Models) |
| Heights | AHB:206 / BHB:170 / CHB:151 / DHB:189 / EHB:166 / GHB:136 / HHB:130 / IHB:231 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP56 (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Pipe / Flexible Low / Flexible Spigot / Single Bolt / Magnetic / Magnetic+3 Bolts / Flexible & Permanent |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
