36-inch Traffic Advisor Bar (SM3070L-6) with smoked lens — 6 heads × 12 LEDs, 72 high-intensity LEDs total. ECE R65 XA2 and SAE J595 certified with 22 flash patterns controlled via external controller, memory function, and automatic light sensor for day/night modes. IP67 waterproof, solid aluminum housing with bolt-on mounting, DC 12V-24V wide voltage, and -30°C to +50°C temperature range. Dimensions: 927×52×59mm. Built for emergency vehicles, utility trucks, and highway safety fleets.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

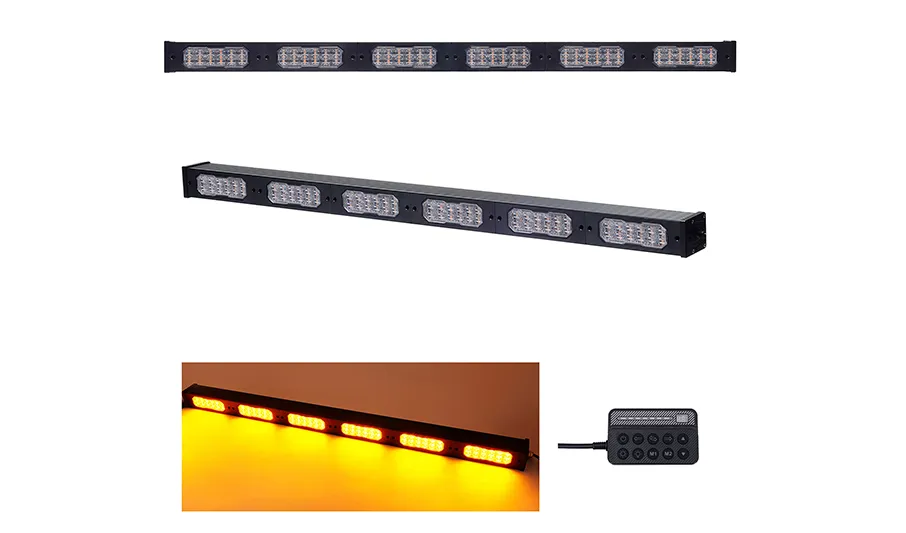

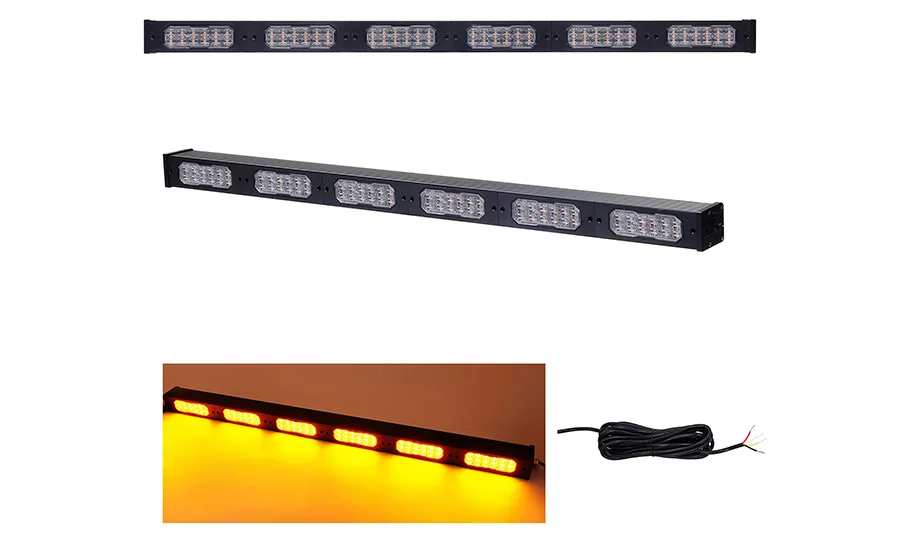

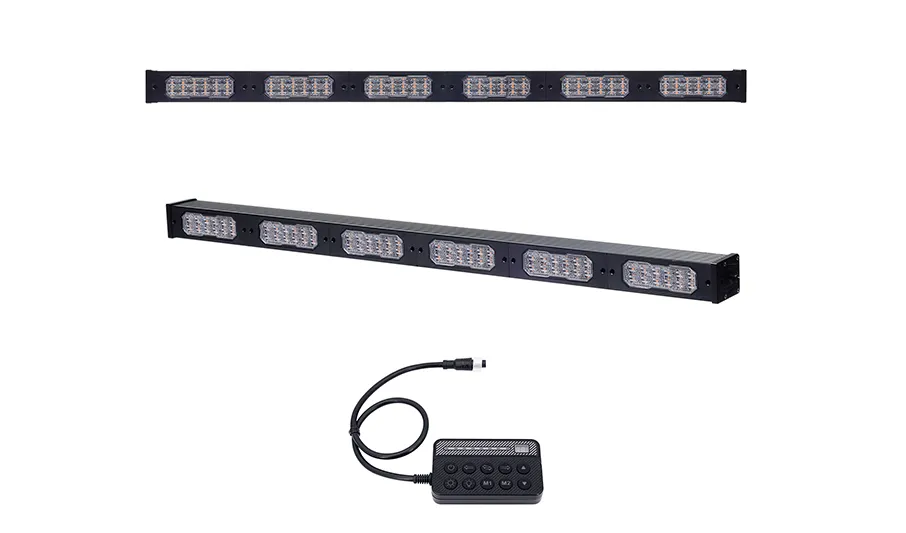

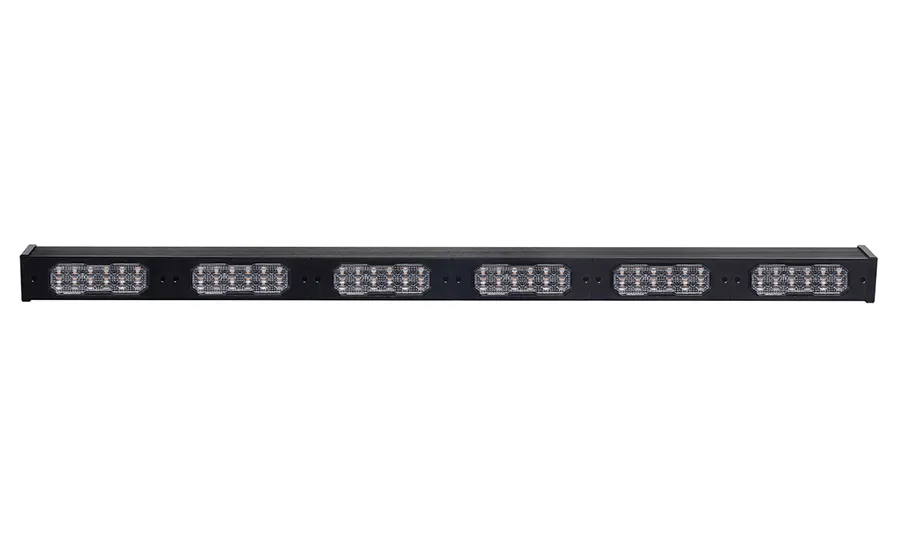

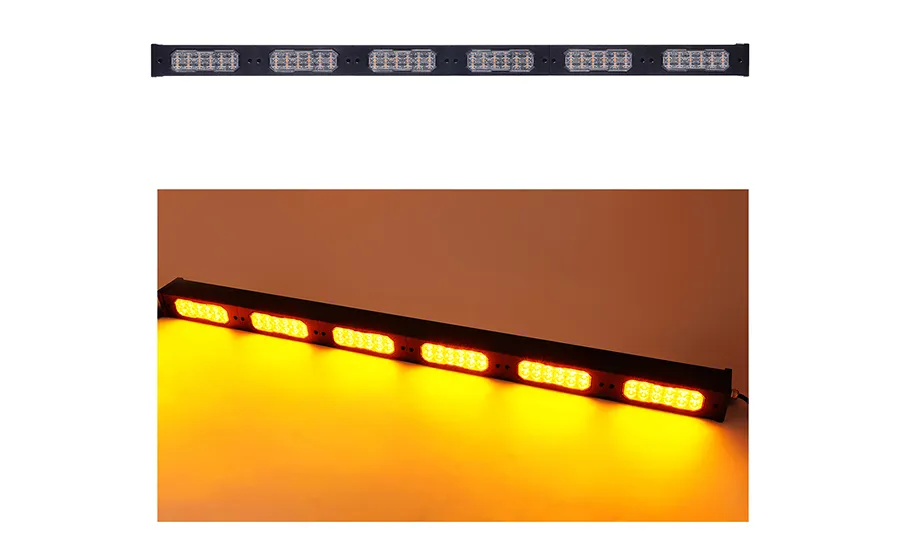

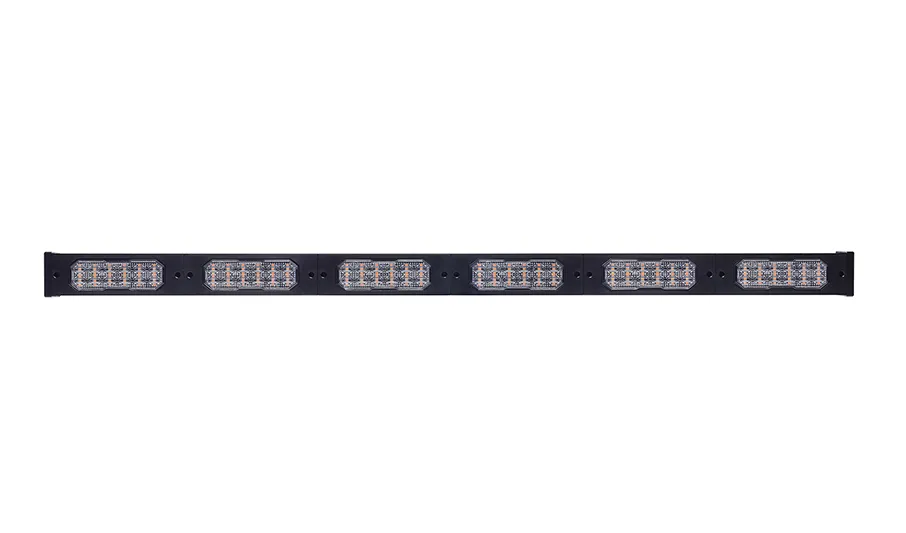

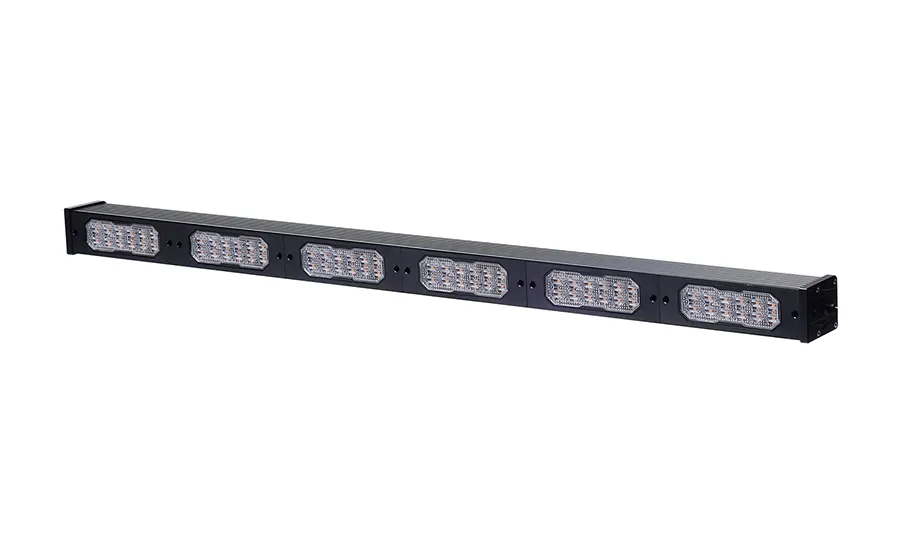

The SM3070L-6 36" Traffic Advisor Bar delivers professional-grade directional warning with 6 heads × 12 LEDs — a total of 72 high-intensity LEDs behind a sleek smoked lens. ECE R65 XA2 and SAE J595 certified, it offers 22 flash patterns operated via an external controller with memory function for maximum traffic control versatility.
Built for year-round emergency response, this traffic advisor features IP67 waterproof protection, a solid aluminum housing with bolt-on mounting, and an automatic light sensor that adjusts between day and night modes. Operating temperature range from -30°C to +50°C and wide DC 12V-24V compatibility ensure reliable performance on emergency vehicles, utility trucks, highway maintenance fleets, and construction equipment. Dimensions: 927×52×59mm.
| Parameter | Specification |
|---|---|
| Product Model | SM3070L-6 |
| Product Type | 36" Traffic Advisor Bar — Smoked Lens |

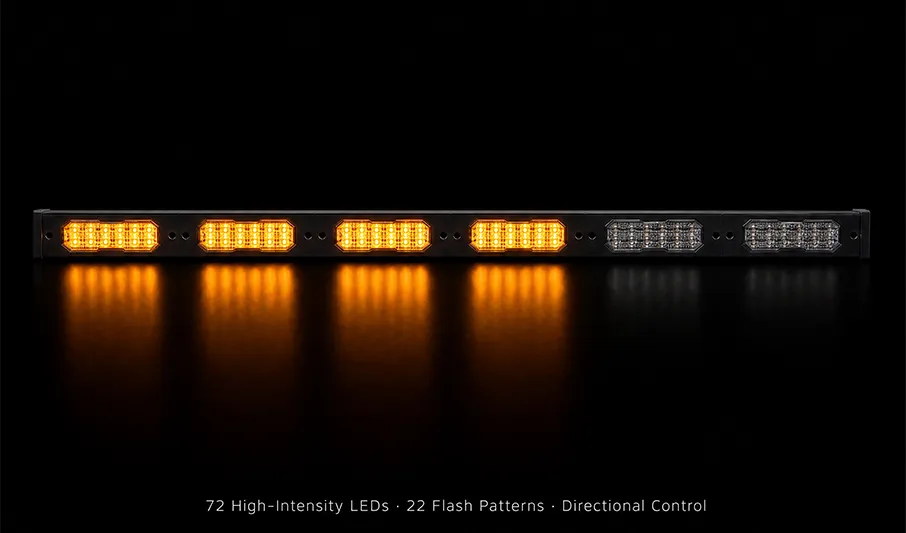

| LED Configuration | 6 Heads × 12 LEDs = 72 High-Intensity LEDs |

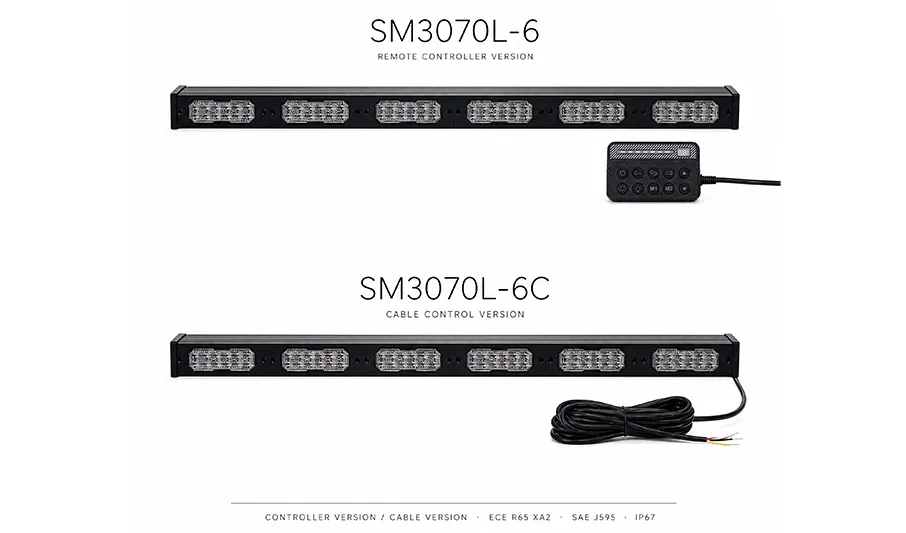

| Flash Patterns | 22 Selectable Patterns (Operated by Controller) |
| Memory Function | Yes — Recalls Last Pattern After Power Cycle |

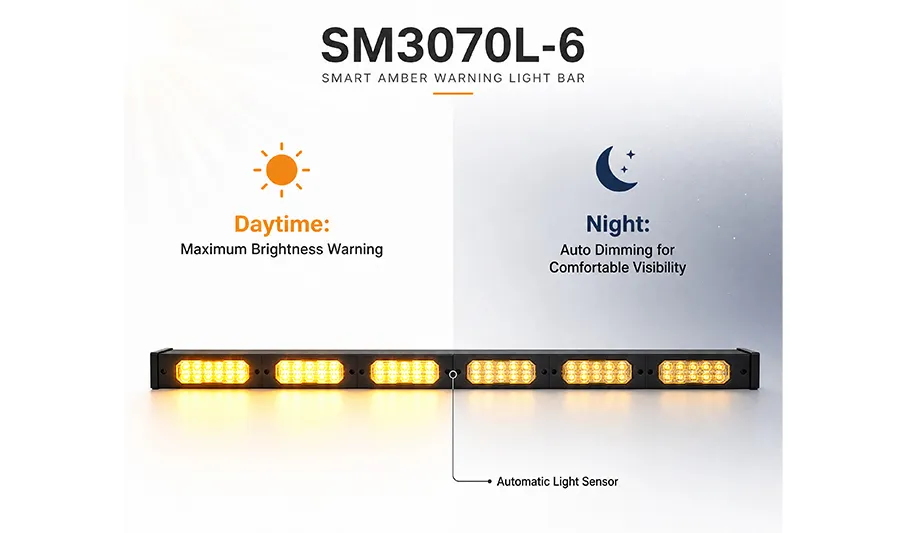

| Auto Light Sensor | Yes — Automatic Day and Night Mode Adjustment |

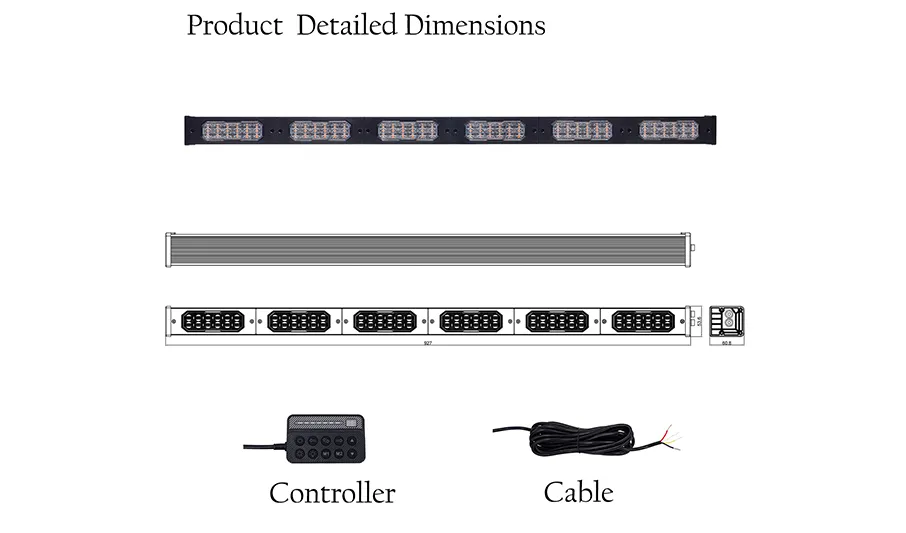

| Dimensions (L × H × W) | 927mm × 52mm × 59mm |

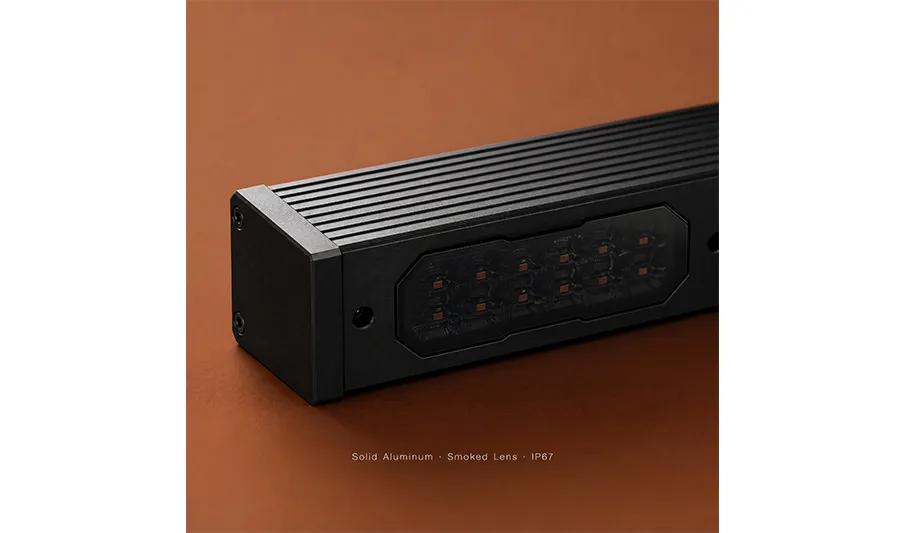

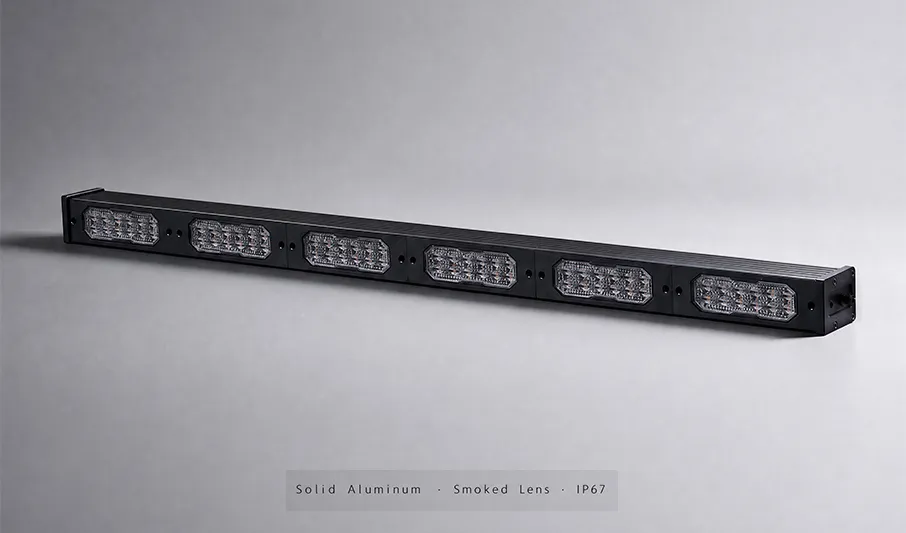

| Housing Material | Solid Aluminum Housing, Bolt-On Mounting |
| Lens Type | Smoked Lens |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65 XA2, SAE J595 |
| Ingress Protection | IP67 Waterproof |
| Operating Temperature | -30°C to +50°C |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
