SM818 Series micro beacon — 6 mounting options, all IP66 waterproof. All models share a 125×61mm cover with 36 super bright LEDs, ECE R65 120 flashes per minute, ECE R10 certified, and DC 12-24V wide voltage. Heights: AC (flexible pipe, 180mm), EC (single bolt, 138mm), GC (magnetic, 110mm), HC (magnetic low profile, 108mm), IC (flexible & permanent, 203mm), PC (3 bolts, 98mm). Built for trucks, tractors, construction, and emergency vehicles from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

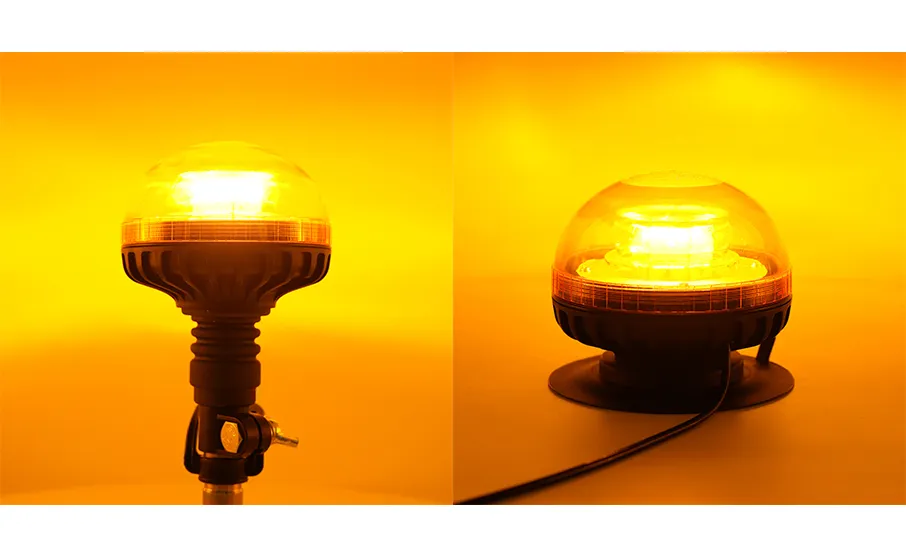

The SM818 Series Micro Beacon delivers powerful 120 flashes per minute warning performance with 6 compact mounting configurations — all featuring IP66 waterproof protection. Every model shares 36 super bright LEDs, ECE R65 and ECE R10 certified, with wide DC 12-24V voltage compatibility for universal vehicle fitment.

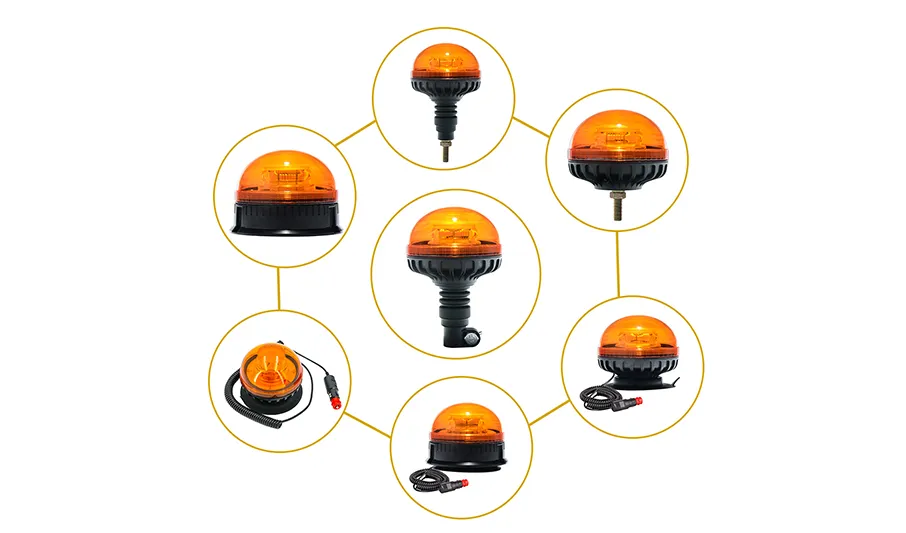

The uniform 125×61mm cover ensures consistent visibility across all mounting styles, with heights ranging from a low-profile 98mm to 203mm. Available in flexible pipe (AC), single bolt (EC), magnetic (GC), magnetic low profile (HC), flexible & permanent (IC), and 3-bolt (PC) mounts. All operate reliably from -30°C to +50°C. Ideal for tractors, trucks, construction vehicles, forklifts, agricultural machinery, and emergency response units.
| Model | Mount Type | Height | Flash Rate | Voltage |
|---|---|---|---|---|
| SM818AC | Flexible Pipe Mount | 180mm | 120 FPM | DC 12-24V |
| SM818EC | Single Bolt Mount | 138mm | 120 FPM | DC 12-24V |
| SM818GC | Magnetic Mount | 110mm | 120 FPM | DC 12-24V |
| SM818HC | Magnetic Mount (Low Profile) | 108mm | 120 FPM | DC 12-24V |
| SM818IC | Flexible & Permanent Mount | 203mm | 120 FPM | DC 12-24V |
| SM818PC | 3 Bolts Mount (Compact) | 98mm | 120 FPM | DC 12-24V |
| Parameter | Specification |
|---|---|
| Product Series | SM818 Micro Beacon (6 Models) |
| LED Configuration | 36 Super Bright LEDs |
| Flash Rate | ECE R65 120 Flashes per Minute |

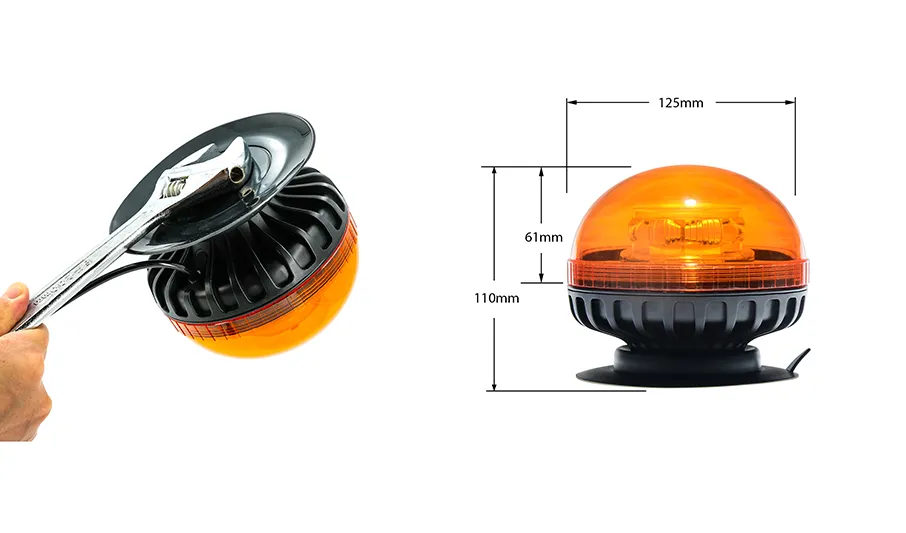

| Cover Dimensions | 125mm × 61mm (All Models) |
| Heights | AC:180 / EC:138 / GC:110 / HC:108 / IC:203 / PC:98 (mm) |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65, ECE R10 |
| Ingress Protection | IP66 Waterproof (All Models) |
| Operating Temperature | -30°C to +50°C |
| Mount Options | Flexible Pipe / Single Bolt / Magnetic / Magnetic Low Profile / Flexible & Permanent / 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
