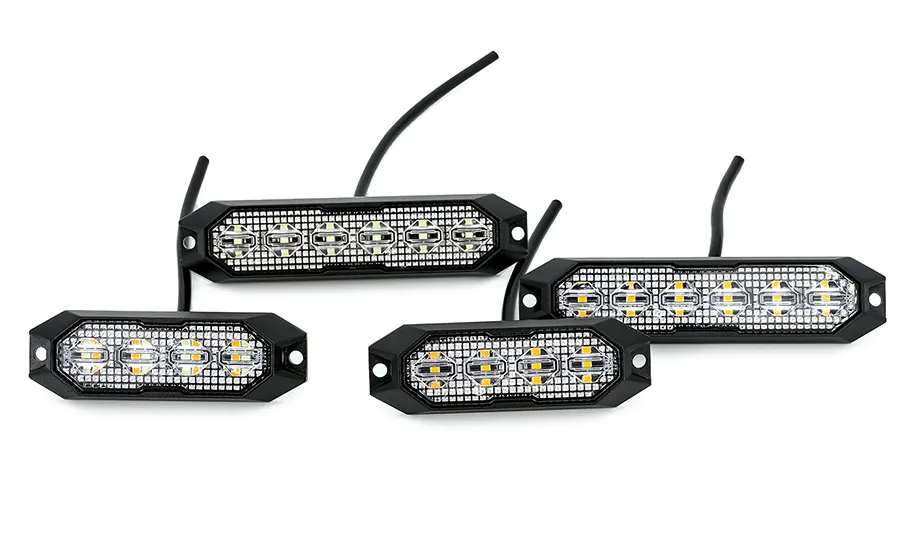

Surface mount LED light head series — SM3070A (3 LED, 79.5×30.5×13mm), SM3070B (4 LED, 95×30×13mm), SM3070C (6 LED, 129×30×13mm). Each LED delivers 3W high-intensity output with 16 selectable flash patterns, alternation & synchronization, and memory function. ECE R65 XA1 single & double flash, ECE R10, and SAE J595 Class1 certified. IP6K9K steam-jet proof with 4 cables — built for emergency vehicles, utility trucks, and heavy-duty equipment.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

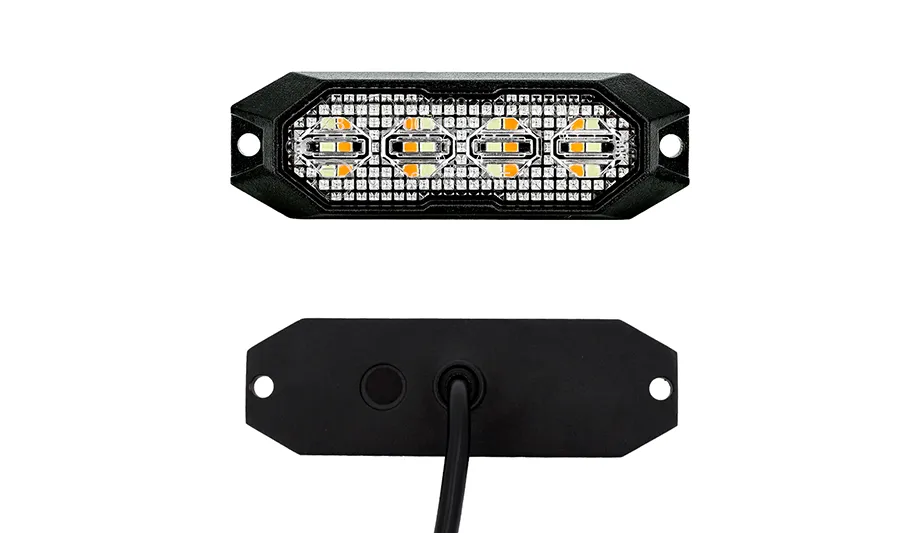

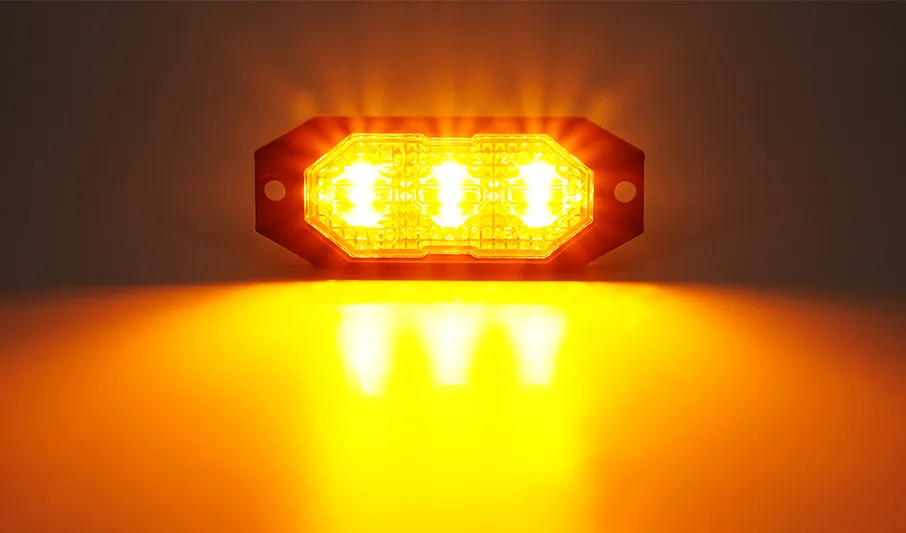

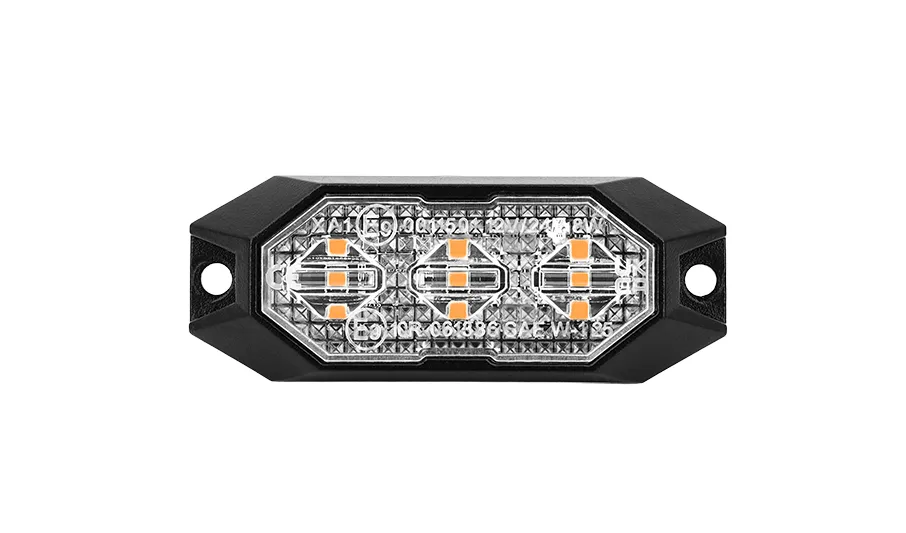

The SM3070 Series surface mount LED light heads deliver powerful warning and signalling in a compact, low-profile design. Available in three models — SM3070A (3 LED, 79.5×30.5×13mm), SM3070B (4 LED, 95×30×13mm), and SM3070C (6 LED, 129×30×13mm) — each LED delivers 3W of high-intensity output. ECE R65 XA1 single & double flash and ECE R10 certified, with SAE J595 Class1 compliance for maximum versatility.

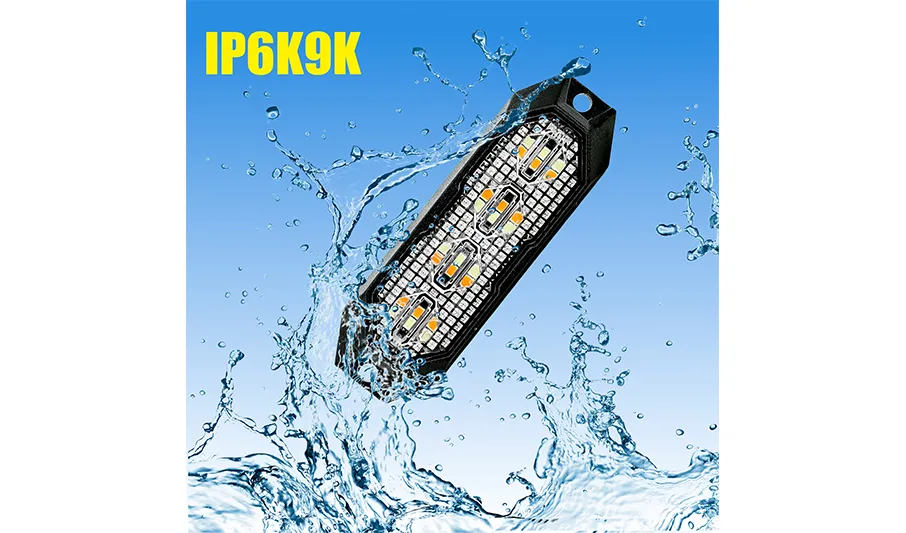

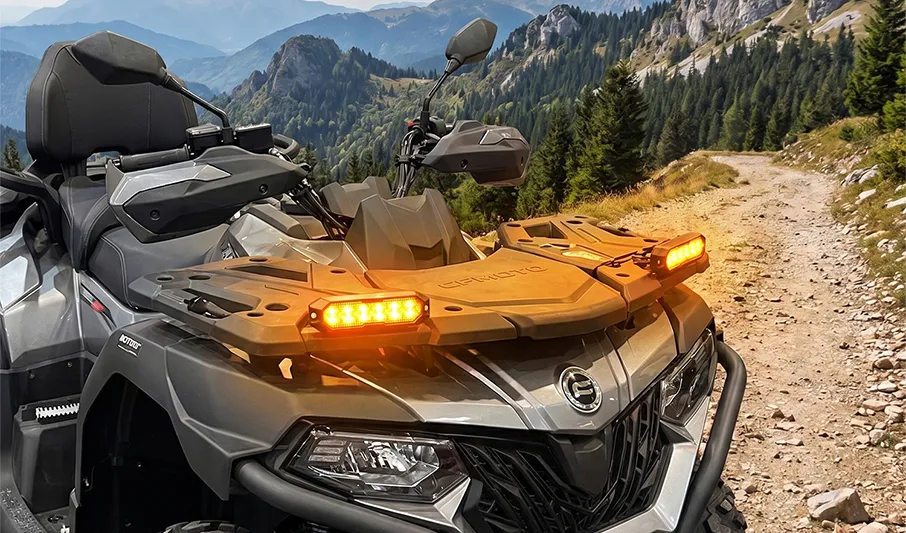

Built for the toughest environments, the SM3070 series features IP6K9K protection — fully dust-tight and capable of withstanding close-range high-pressure steam-jet cleaning. 16 selectable flash patterns with alternation & synchronization and memory function, plus 4 cables for flexible installation. Ideal for emergency vehicles, utility trucks, construction equipment, forklifts, mining, and food processing applications.
| Parameter | Specification |
|---|---|
| Product Series | SM3070 Surface Mount LED Light Head |
| Available Models | SM3070A (3 LED) / SM3070B (4 LED) / SM3070C (6 LED) |

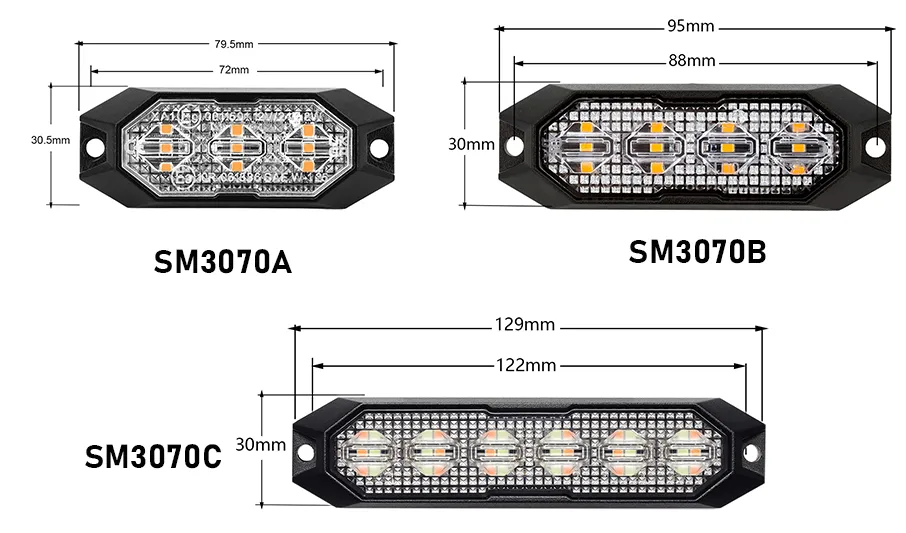

| Dimensions (L × W × H) | SM3070A: 79.5×30.5×13mm / SM3070B: 95×30×13mm / SM3070C: 129×30×13mm |
| LED Power | 3W per LED |
| Flash Patterns | 16 Selectable Patterns (Alternation & Synchronization) |
| Memory Function | Yes - Recalls Last Pattern After Power Cycle |
| Cables | 4 Cables |
| Operating Voltage | DC 12 V - 24 V |
| Certifications | ECE R65 XA1 (Single & Double Flash), ECE R10, SAE J595 Class1 |
| Ingress Protection | IP6K9K (Dust-Tight, High-Pressure / Steam-Jet Proof) |
| Mounting Type | Surface Mount |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
