SM3070DS Series LED Surface Mount Lighthead

ECE R65 XA2/XB2 / ECE R10    SAE J595 Class1    IP6K9K    12/24 High-Power LEDs    16 Flash Patterns + Memory    3W per LED    DC 12V-24V    Smoked Lens    3-Year Warranty

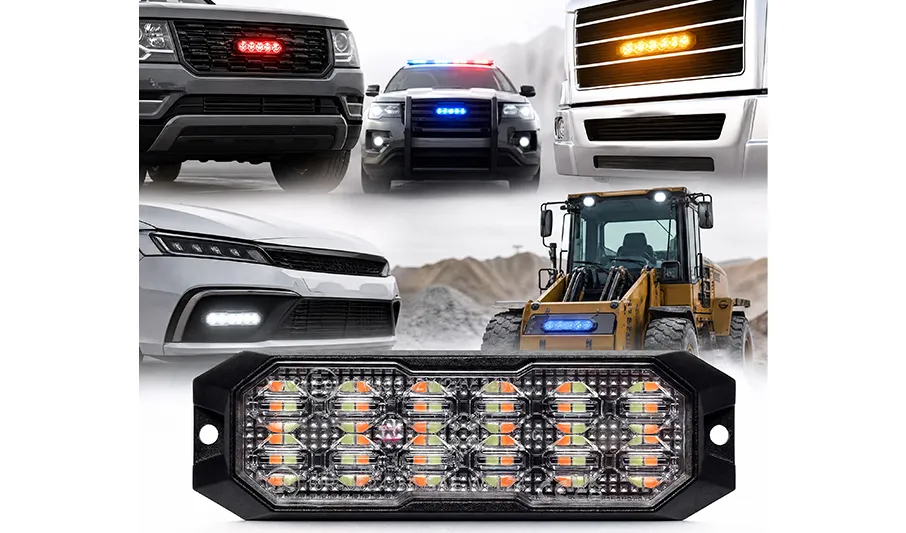

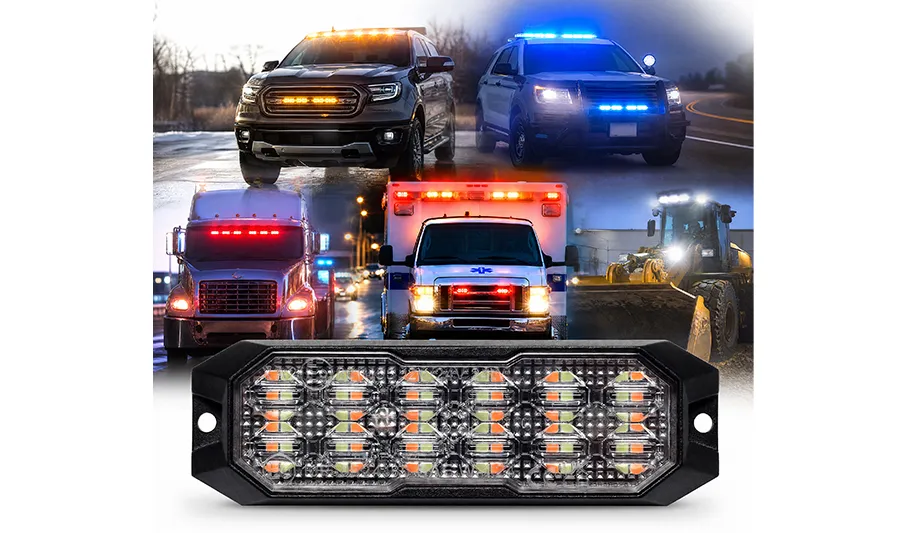

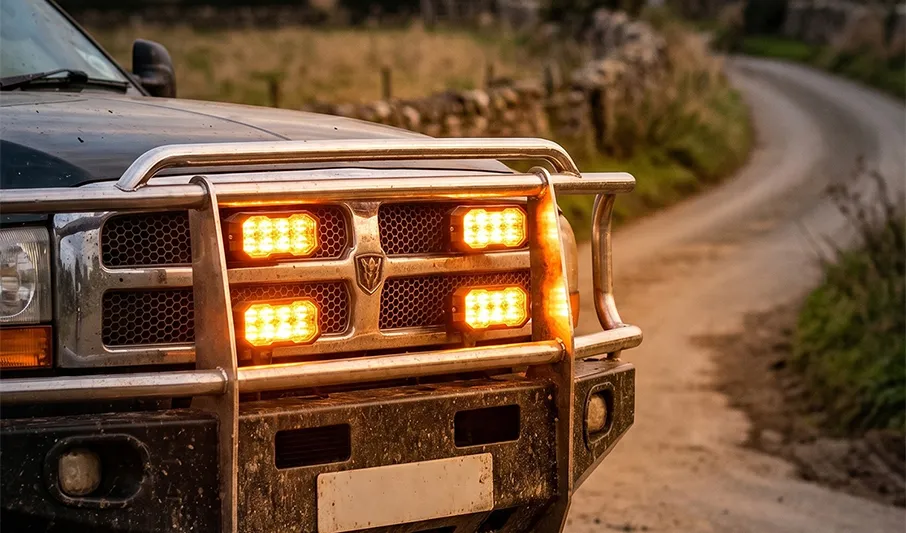

SM3070DS Series smoked lens heavy-duty strobe light — 129×40×13mm. Single color models (Amber ECE R65 XA2, Blue ECE R65 XB2, Red, Green, White) with 12 LEDs. Dual color models (AB, AW, BR, RW, WG) with 24 LEDs in various 2-color combinations. All feature 3W high-power LEDs, ECE R10 certified (select models with ECE R65), SAE J595 Class1 on certified models, IP6K9K steam-jet proof, 5 cables, 16 flash patterns with alternation & synchronization and memory function. Built for emergency vehicles, utility trucks, and heavy-duty equipment.

Sumbexauto   IATF 16949 & ISO 9001 Certified   18+ Years Manufacturing   OEM/ODM Welcome

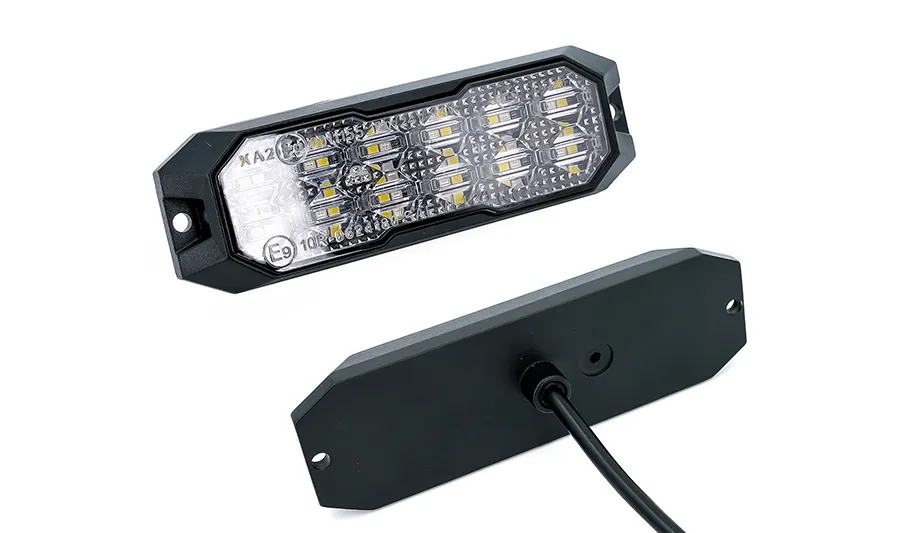

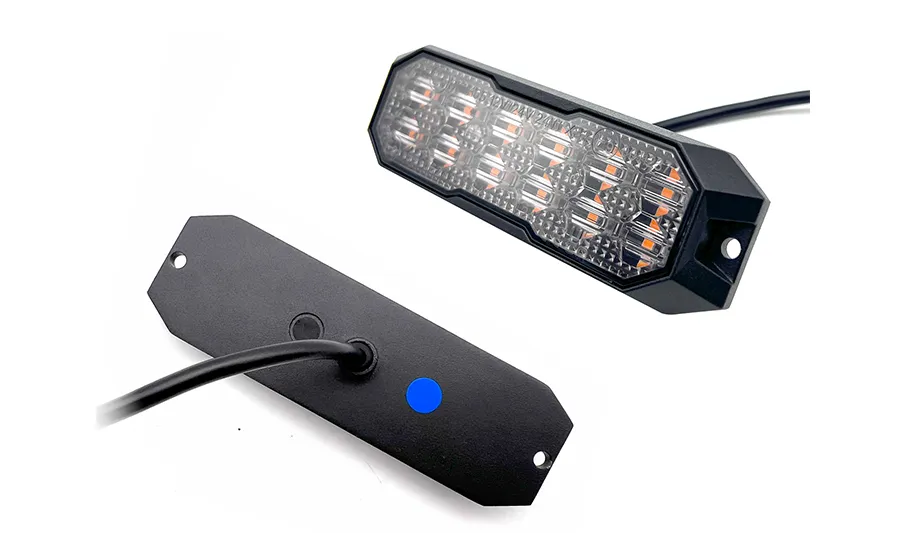

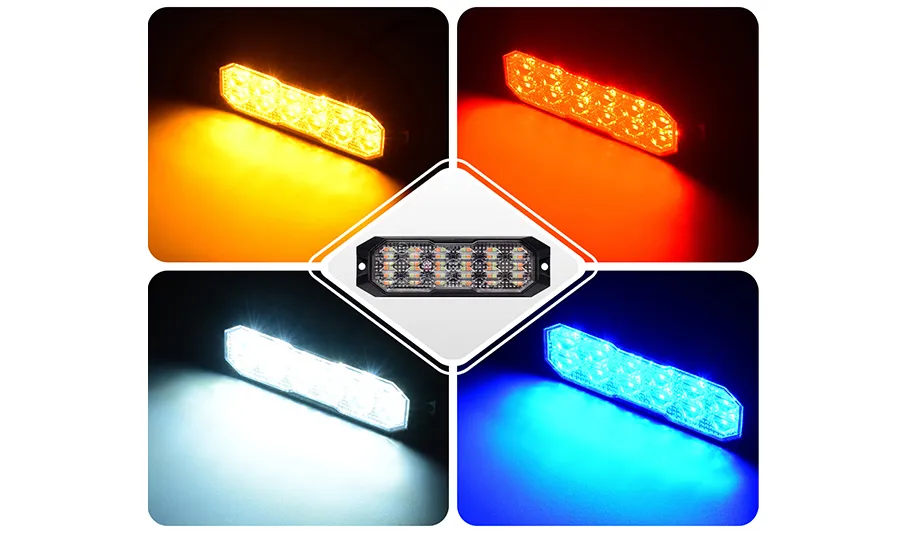

The SM3070DS Series smoked lens heavy-duty strobe lights deliver powerful warning performance in a sleek, low-profile design. Available in single color (12 LEDs: Amber, Blue, Red, Green, White) and dual color configurations (24 LEDs: AB, AW, BR, RW, WG), all feature 3W high-power LEDs with 16 selectable flash patterns, alternation & synchronization, and memory function. Compact dimensions of 129×40×13mm fit tight installations without sacrificing visibility.

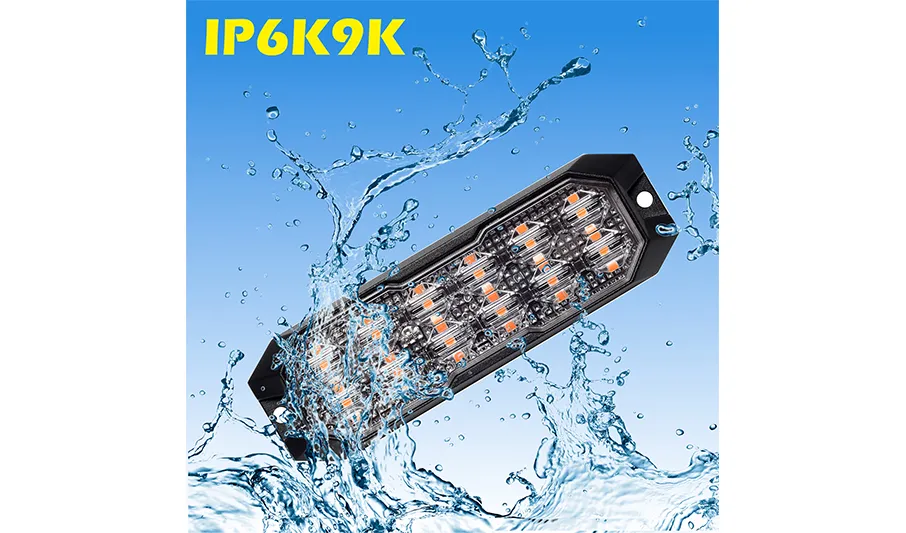

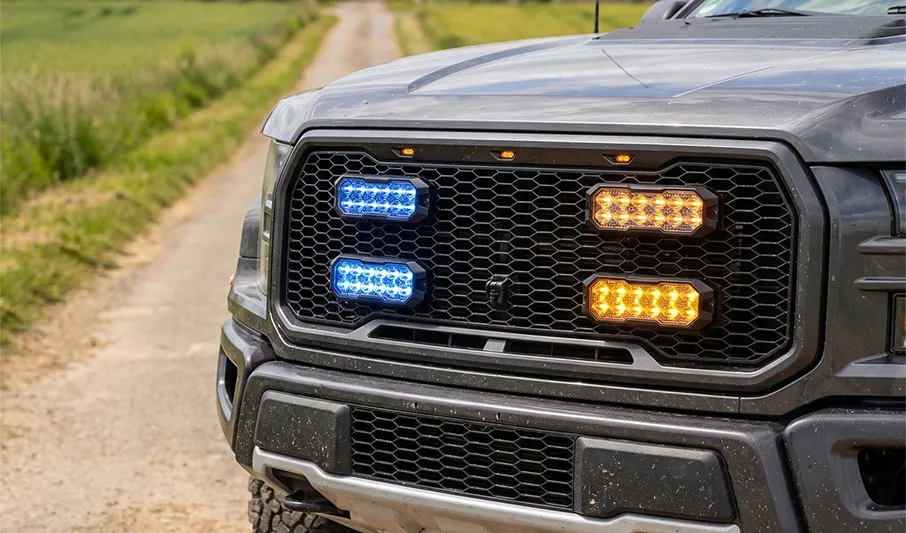

Built for the harshest environments, the SM3070DS series features IP6K9K protection — fully dust-tight and capable of withstanding close-range high-pressure steam-jet cleaning. Amber and Blue single color models are ECE R65 certified (XA2/XB2); dual color models AB, AW, and BR carry ECE R65 and SAE J595 Class1. All models are ECE R10 certified with 5 cables and high/low current options. Wide DC 12V-24V compatibility ensures reliable performance on emergency vehicles, utility trucks, construction equipment, and heavy-duty machinery.

SM3070DS Series Models (Dimensions: 129×40×13mm)

ModelLEDColor(s)CertificationPatterns
SM3070DS-A12 LEDAmberECE R65 XA2, ECE R10, SAE J59516
SM3070DS-B12 LEDBlueECE R65 XB2, ECE R1016
SM3070DS-R12 LEDRedECE R1016
SM3070DS-G12 LEDGreenECE R1016
SM3070DS-W12 LEDWhiteECE R1016
SM3070DS-AB24 (12+12)Amber + BlueECE R65 XA2 XB2, ECE R10, SAE J5959+8
SM3070DS-AW24 (12+12)Amber + WhiteECE R65 XA2, ECE R10, SAE J5959+8
SM3070DS-BR24 (12+12)Blue + RedECE R65 XB2, ECE R109+8
SM3070DS-RW24 (12+12)Red + WhiteECE R109+8
SM3070DS-WG24 (12+12)White + GreenECE R109+8
OEM / ODM Ready (MOQ 500 units): Custom logo, packaging, cable length, flash patterns, and dual color combinations. Supported by our IATF 16949 & ISO 9001 certified factory with 18+ years of experience. Defect rate below 0.2%, 100% on-time delivery.

Technical Specifications (All Models)

ParameterSpecification
Product SeriesSM3070DS Smoked Lens Heavy-Duty Strobe Light
Available Models5 Single Color + 5 Dual Color (AB, AW, BR, RW, WG)

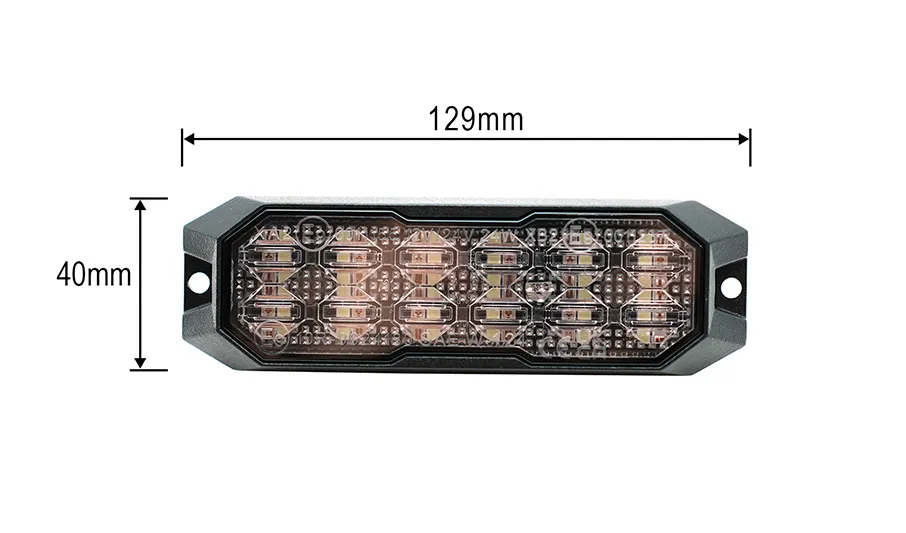

Dimensions (L × H × D)129mm × 40mm × 13mm (All Models)
LED ConfigurationSingle Color: 12 LEDs | Dual Color: 24 LEDs (12+12), 3W per LED
Flash PatternsSingle Color: 9 patterns | Dual Color: 8 patterns (16 total selectable)
FunctionsAlternation & Synchronization, Memory, High & Low Current
Cables5 Cables
Operating VoltageDC 12 V - 24 V
Certifications (by model)ECE R65 (A/B/AB/AW/BR), ECE R10 (All), SAE J595 Class1 (A/AB/AW)
Ingress ProtectionIP6K9K (Dust-Tight, High-Pressure / Steam-Jet Proof)
Lens TypeSmoked Lens
Warranty3 Years
Customization (MOQ 500 Units)Custom Logo, Packaging, Cable Length, Flash Patterns, Colors
Manufacturer CertificationsIATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25
