Heavy duty warning beacon series — SM817A (16 Amber LEDs) and SM817AC (Dual Color: 8 Amber + 8 White LEDs). Each beacon features 16 high-power 3W LEDs, 8 selectable flash patterns, SAE J845 Class 1 and E9 certified with EMC compliance. IP66 waterproof, DC 12-48V wide voltage, aluminum mount with single or triple bolt options. Built for trucks, construction, mining, and heavy-duty equipment in extreme temperatures from -30°C to +50°C.
Sumbexauto IATF 16949 & ISO 9001 Certified 18+ Years Manufacturing OEM/ODM Welcome

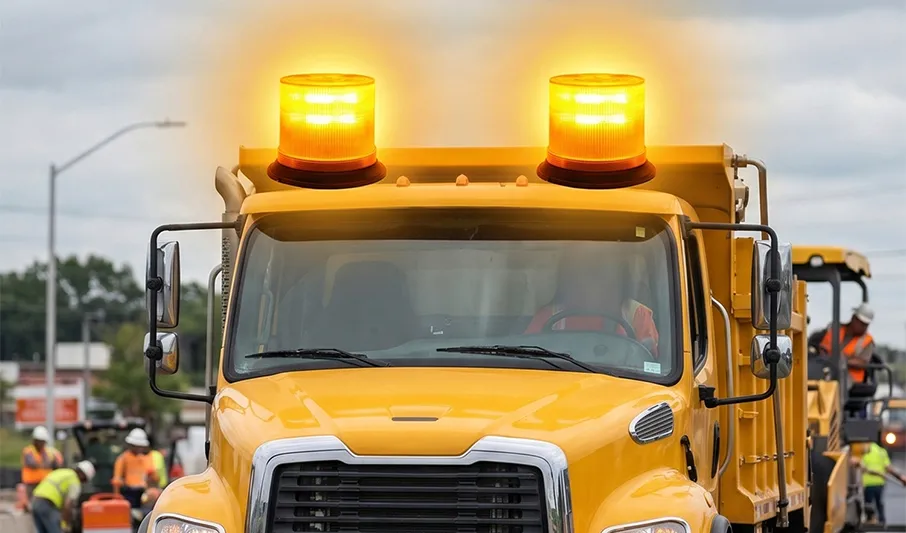

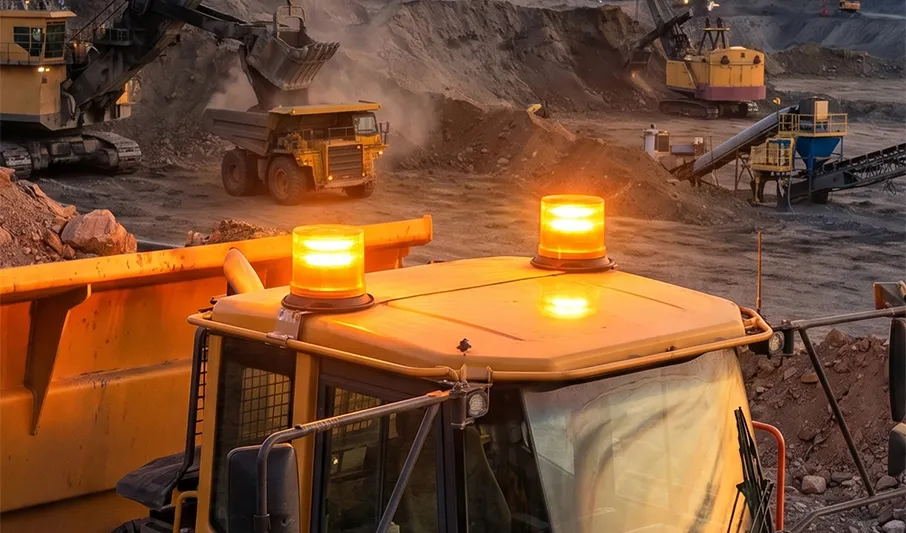

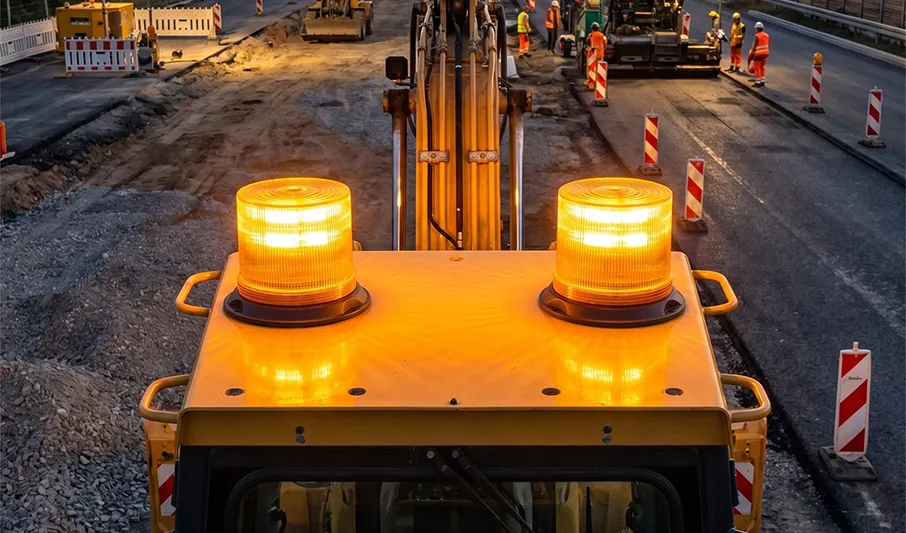

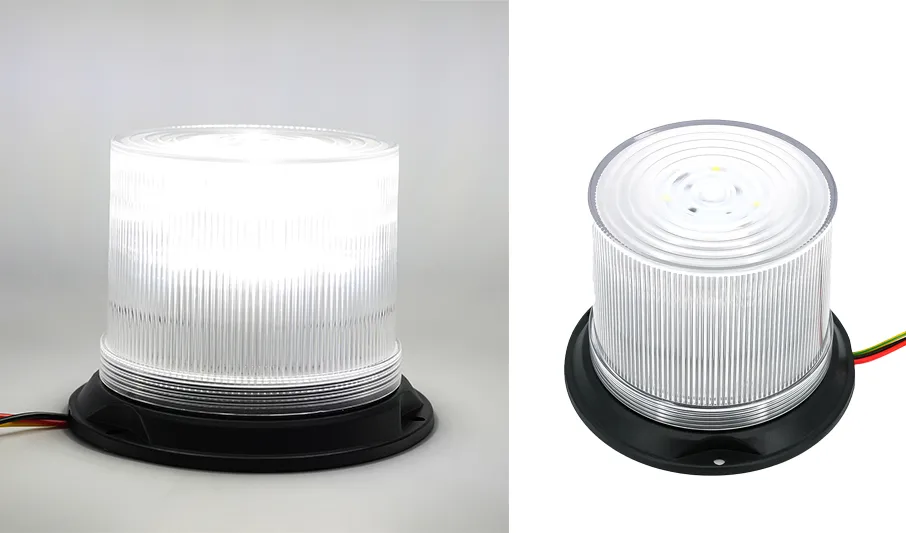

The SM817A / SM817AC Heavy Duty Warning Beacon delivers commanding visibility with 16 high-power 3W LEDs in a rugged, all-metal construction. SAE J845 Class 1 certified and E9 approved with EMC compliance, it offers 8 selectable flash patterns for maximum adaptability on trucks, construction vehicles, mining equipment, agricultural machinery, and emergency response units.

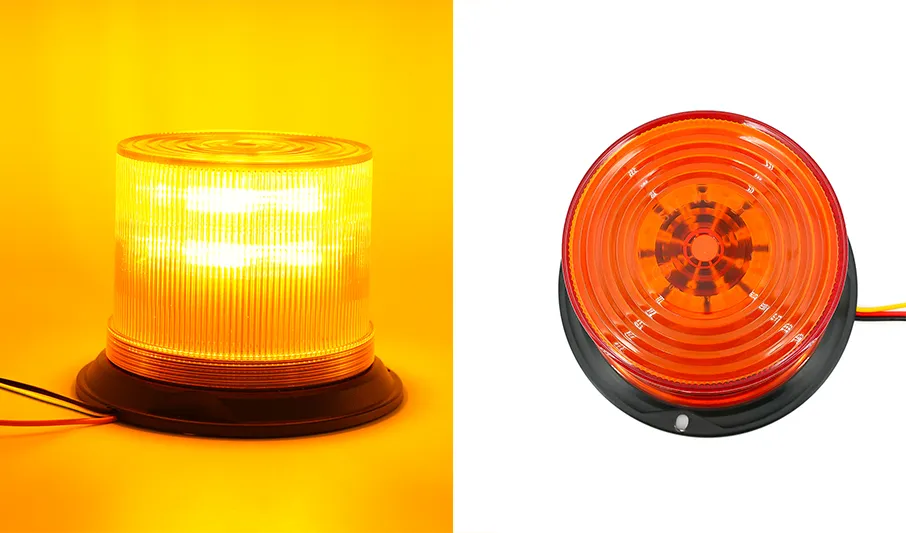

Available in two configurations — SM817A with 16 Amber LEDs for classic warning performance, and SM817AC with dual-color 8 Amber + 8 White LEDs for enhanced versatility. Both models feature DC 12-48V wide voltage compatibility, IP66 waterproof protection, and a heavy-duty aluminum mount with permanent single bolt or 3-bolt installation options. Operating temperature range from -30°C to +50°C ensures reliable performance in extreme conditions.
| Parameter | Specification |
|---|---|
| Product Series | SM817 Heavy Duty Warning Beacon |

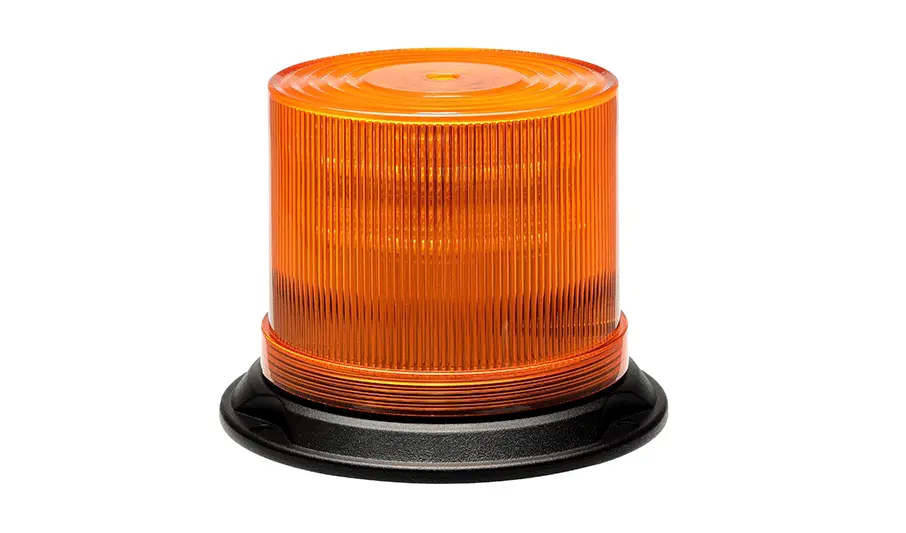

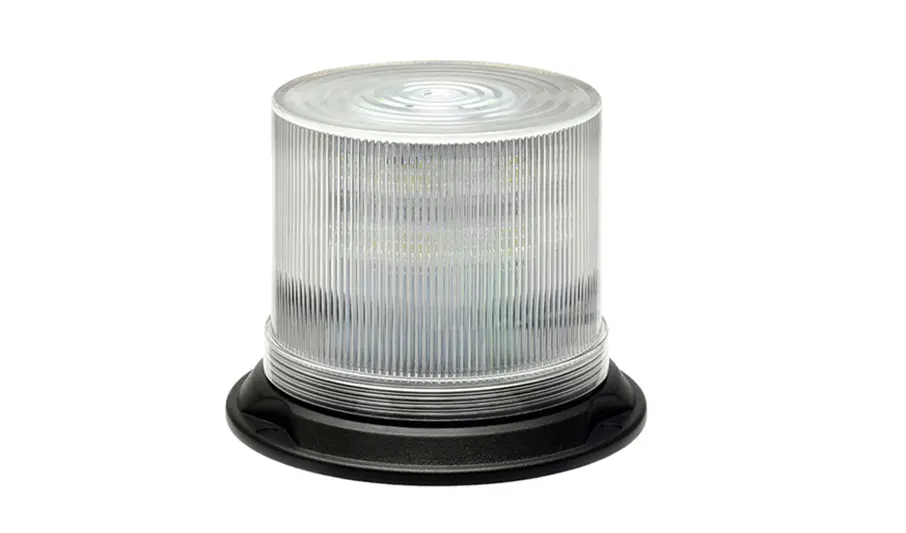

| Available Models | SM817A (16 Amber) / SM817AC (8 Amber + 8 White Dual Color) |
| LED Configuration | 16 pcs × 3W High Power LEDs |
| Flash Patterns | 8 Selectable Patterns |
| Operating Voltage | DC 12 V - 48 V |
| Certifications | SAE J845 Class 1, E9 Approved, EMC |
| Ingress Protection | IP66 Waterproof |
| Operating Temperature | -30°C to +50°C |
| Mount Type | Heavy Duty Aluminum Mount |
| Mounting Options | Permanent Single Bolt or 3 Bolts |
| Warranty | 3 Years |
| Customization (MOQ 500 Units) | Custom Logo, Packaging, Cable Length, Flash Patterns |
| Manufacturer Certifications | IATF 16949, ISO 9001, ECE R65, SAE, EMC, ECE R148, REACH, RoHS, CE, UKCA, IP69K, IP66, IP67, ICAO, CISPR 25 |
Click the button, then select "Save as PDF" in the print dialog to download.
| Advantage | Detail |
|---|---|
| Manufacturing Experience | 18+ Years |
| Quality Certification | IATF 16949 & ISO 9001 |
| Defect Rate | Below 0.2% |
| On-Time Delivery | 100% |
| Warranty | Up to 3 Years |
| R&D Capability | 6-8 New Designs per Year, Over 100 Patents |
| OEM / ODM | Fast Response, Custom Logo, Packaging & Specifications |
| Testing Equipment | Lumen, Aging, UV, High-Low Temp, Waterproof, Vibration |
